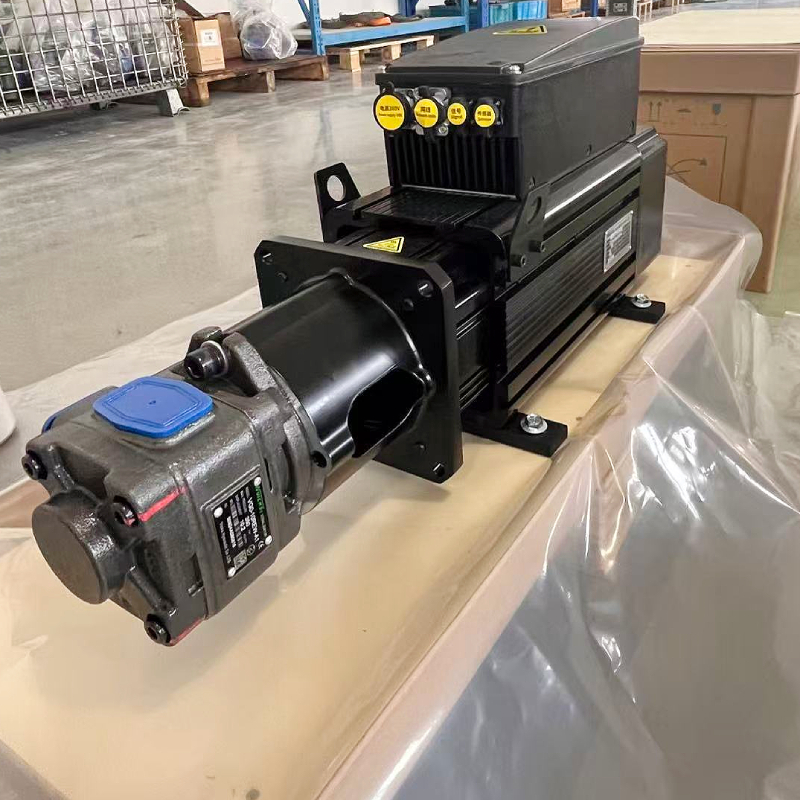

Servo Integrated Machine for Shoe Making Machinery

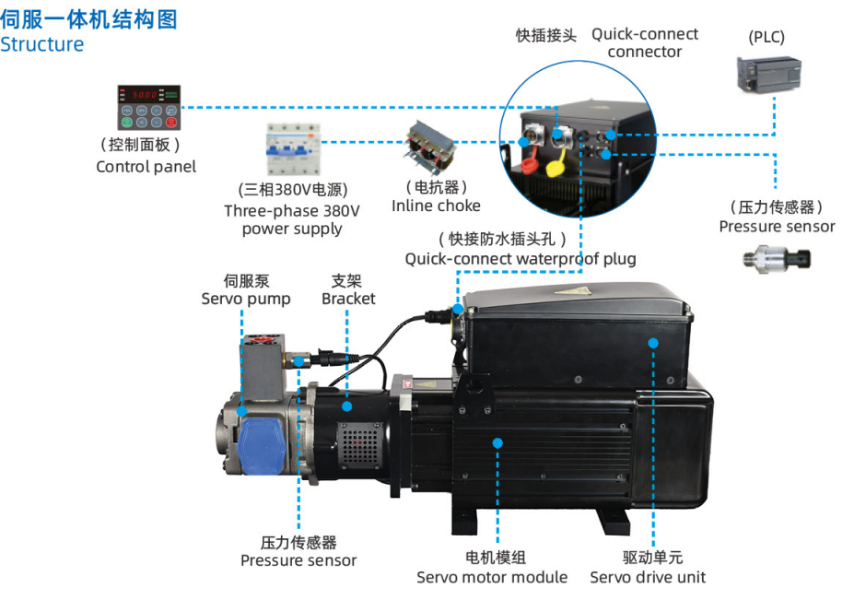

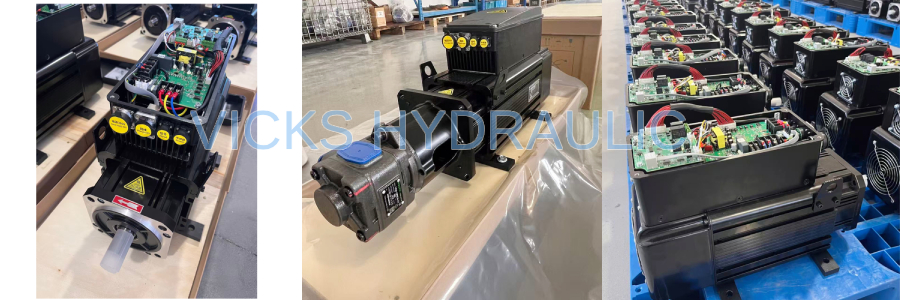

Structure of ervo integrated machine
Configuration plan:
| Structure | Model | Motor Rated Torque Nm | Peak Torque Nm | Motor Rated Speed rpm | Rated Frequency Hz | Motor Rated Power KW | Motor Rated Current A | KT Value | Drive Power KW | Drive Rated Current A | 140bar Pump flow cc | 175bar Pump flow cc | 210bar pump flow cc | 250bar pump flow cc |
| 130 | 037 | 23 | 46 | 1700 | 113.33 | 4.1 | 7.7 | 3.28 | 3.7 | 9 | 13 | 10 | 08 | 05 |
| 055 | 30 | 60 | 1700 | 5.4 | 9.8 | 3.08 | 5.5 | 13 | 16 | 13 | 10 | 08 | ||
| 075 | 41 | 81 | 1700 | 7.3 | 12.7 | 3.18 | 7.5 | 17 | 20 | 16 | 13 | 10 | ||
| 180 | 090 | 48 | 96 | 1700 | 9 | 14.3 | 3.4 | 11 | 25 | 25 | 20 | 16 | 13 | |
| 100 | 56 | 105 | 1700 | 10 | 16.5 | 3.39 | 11 | 25 | 32 | 25 | 20 | 16 | ||
| 120 | 69 | 129 | 1700 | 11.5 | 21 | 3.28 | 15 | 32 | 40 | 32 | 25 | 20 | ||
| 150 | 84 | 168 | 1700 | 15 | 27 | 3.11 | 15 | 32 | 50 | 40 | 32 | 25 | ||
| 185 | 112 | 224 | 1700 | 19.5 | 32 | 3.31 | 18.5 | 37 | 63 | 50 | 40 | 32 |
NVICKS standard configurations:
While ensuring system performance, stability, and cost-effectiveness, the NVK hydraulic all-in-one system emphasizes simplified installation and usage, lowering the barrier to entry. The NVK series all-in-one system is a highly protected, integrated solution that enables high-performance vector control of permanent magnet synchronous motors with high response and low interference. It also features background software monitoring, a communication bus, and tuning-free support, offering a rich and powerful combination of features and stable performance. In addition to general hydraulic applications, it is particularly suitable for applications that do not require an electrical control cabinet, such as energy-saving vulcanizers, electro-hydraulic bending machine, injection molding machines, presses, etc.
NVK Servo Integrated Unit: Features & Benefits

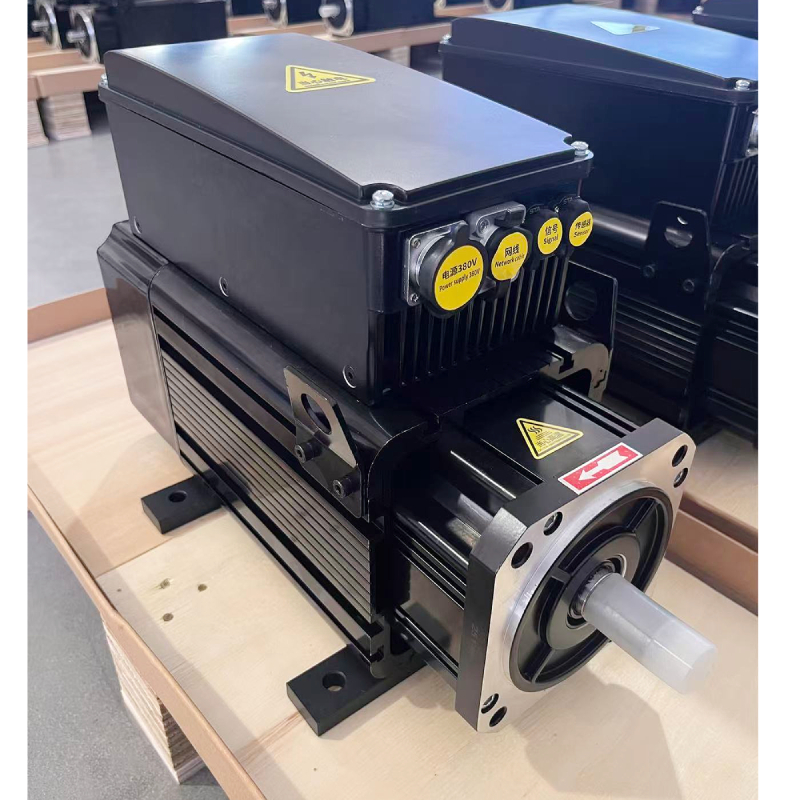

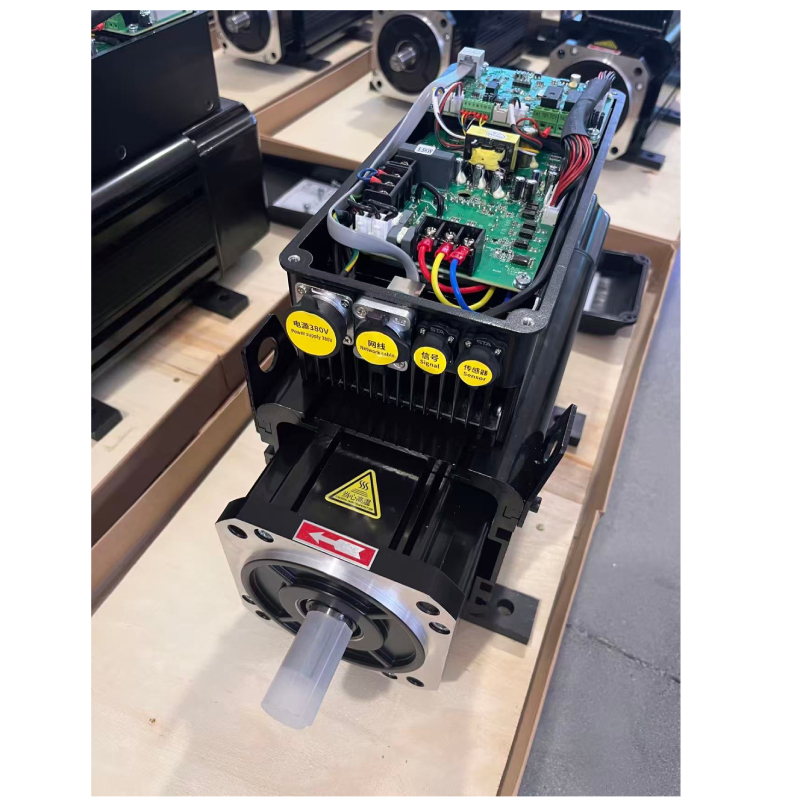

Compact & Integrated Design
Features an ultra-compact design, replacing traditional asynchronous motors with a latest-generation permanent magnet synchronous servo motor, reducing dimension by approximately 30% for the same power rating.
The drive module housing is manufactured using die-cast aluminum for superior heat dissipation, supplemented with an independent cooling fan to reduce temperature rise and extend service life. The module is designed for easy disassembly.
The top cover is made of flame-retardant ABS material and includes a waterproof sealing strip for enhanced durability and protection.
This all-in-one integrated solution eliminates the need for a separate external control cabinet, saving significant space, simplifying wiring, and drastically improving the user experience.
Superior Performance
Inherits the advantages of synchronous servo technology, providing high-speed dynamic response with a reaction time of approximately 30ms, far surpassing the 200ms+ typically required by asynchronous motor inverter systems.
Enables real-time speed adjustment based on process demands, boosting production efficiency and reducing energy consumption.
Utilizes a dual closed-loop control system, leveraging the motor’s internal resolver and a pressure sensor on the oil circuit, to precisely track and control real-time flow and pressure output for high-precision production requirements.
The full series comes with a built-in braking unit and brake resistor, and is equipped with a 17-bit magnetic resolver supporting auto-tuning for setup.
Low Noise & Reduced Oil Temperature
Operates significantly quieter than traditional constant-noise asynchronous motors, with noise levels reduced by 8-10 dB on average. Noise varies with speed, and the cooling fan can be set to auto-stop under low load conditions for even quieter operation.
The servo-based system eliminates the need for high-pressure overflow and often runs at lower speeds according to the process, leading to a notable reduction in oil temperature of 5-10°C.
Simplified Installation & Use
Arrives pre-configured based on user parameters, requiring no complex debugging on-site.
The entire series utilizes aviation-style plugs for all connections, enabling true “plug-and-play” operation. This greatly reduces installation complexity, time, labor costs, and the risk of wiring errors.
For bigger pressure requirements, pls contact us for the matched configurations!
Product Parameters
| Driver power supply parameters and control terminal model | ||||||
| Model | Rated Power | Rated output current | Rated input current | Voltage frequency | Voltage range | Control board model |
| ABT680-T-011 | 11KW | 25A | 26A | Three phase 380V AC, 50/60Hz |
340~456V AC | 74 control board |
| ABT680-T-015 | 15KW | 32A | 34A | 46 control board | ||
| ABT680-T-018 | 18.5KW | 37A | 38A | |||
| ABT680-T-022 | 22KW | 45A | 46A | |||
| ABT680-T-030 | 30KW | 60A | 62A | |||
| ABT680-T-037 | 37KW | 75A | 76A | |||
| ABT680-T-045 | 45KW | 91A | 92A | |||
| ABT680-T-055 | 55 KW | 112A | 113A | |||
| ABT680-T-075 | 75 KW | 150A | 151A | |||
| ABT680-T-090 | 90 KW | 176A | 180A | |||
| ABT680-T-110 | 110 KW | 210A | 214A | |||
| ABT680-T-132 | 132 KW | 253A | 256A | |||
| ABT680-T-160 | 160 KW | 304A | 307A | |||
Installation Instructions
Vertical installation
Horizontal installation
Applications
SHOE MACHINERY
HYDRAULIC PRESS
COMPANY SHOW
Some Exhibitions we took part in, more fairs will be hold~
