VQ Series Double Pump Vickers 3525VQ Vane Pump for Construction Machinery

Short Description:

  Product Introduction The High-pressure and high-performance Intra-vane pumps for Mobile Equipmen Features 1.To adopt balanced hydraulic for the structure of Intra-vane and ten –Vane design, higher pressure, top to 21 MPa. 2.To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency. 3.The side plate is made of dual-metal material, it improved the seizu...


  • Item Name : Hydraulic Rotary Vane Pump
  • Power : Hydraulic
  • Pressure : High pressure
  • Material : Stainless steel
  • Fuel : Diesel
  • Usage : Oil
  • Theory : Rotary pump
  • Structure : Double stage pump
  • Place of Origin : Ningbo, China
  • Delivery : 7-15days
  • Product Detail

    Product Tags



    Product Introduction

    The High-pressure and high-performance Intra-vane pumps for Mobile Equipmen

    Features

    1.To adopt balanced hydraulic for the structure of Intra-vane and ten –Vane design, higher pressure, top to 21 MPa.
    2.To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency.
    3.The side plate is made of dual-metal material, it improved the seizure resistance, and so that the life of pump will be longer.





    Our  company

    Our company is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo motor,Yunshen servo motor, Haitain drive and Sumitomo pump.

    Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high  quality, high efficiency, low consumption, safety. Our company has became a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy saving.






    VQ Series Double Pump



    NO. Part Qty NO. Part Qty NO. Part Qty
    1 Straight Key 1 7 Cir Clip For   Shaft 1 13 Rear Cartridge 1
    2 Shaft 1 8 Pile Type   Retainer 1 14 O Ring 1
    3 Front Cover 1 9 O Ring 1 15 Rear Cartridge 1
    4 Shaft Seal 1 10 Front Cartridge 1 16 Hexagon Headed   Bolt 4
    5 Gasket 1 11 Body 1
    6 Ball Bearing 1 12 Hexagon Headed   Bolt 4

    Model Designation

    (F3-) 3525V  38 A 17 -1 AB 22 R
    Note  Series ▼ Flow-Shaft end pump Port
    connection
    ▼ Flow-cover

    end pump

    Shaft type  Outlet
    Position
    Design
    number
    Rotation
    No-marking:

    Petroleum series oil

    emulsification fluid

    water glycol-fluid
    F3:

    phosphate
    ester fluid

    2520V 10、12、14、15、17、
    19、21、25
    A-SAE
    A-SAE 4-bolt flange
    2、3、4、5、6、7、8、9、10、11、12、14 1-Str key
    86-HD Str key
    11-Spline
    See below  22 (Views from shaft end of pump)
    R-right hand for clockwise
    L-left hand for counter-clockwise
    3520V 21、25、30、32、35、
    38、45
    2、3、4、5、6、7、8、9、10、11、12、14
    3525V 21、25、30、32、35、
    38、45
    10、12、14、15、17、19、21、25
    4520V 42、45、50、57、60、
    66、75
    2、3、4、5、6、7、8、9、10、11、12、14
    4525V 42、45、50、57、60、
    66、75
    10、12、14、15、17、19、21、25
    4535V 42、45、50、57、60、
    66、75
    21、25、30、32、35、38、45

    ▽Usgpm Flow(Usgpm) at 1200r/min and 0.69MPa

    Outlet Positions (Viewed from cover end of pump)
    Outlet positions All series except 4535V 4535V
    No. 1 outlet opposite inlet  AA No. 2 outlet 135° CCW from inlet  No. 2 outlet opposite inlet
    AB No. 2 outlet 45° CCW from inlet  No. 2 outlet 90° CCW from inlet
    AC No. 2 outlet 45° CW from inlet  No. 2 outlet inline with inlet
    AD No. 2 outlet 135° CW from inlet  No. 2 outlet 90° CW from inlet
    No. 1 outlet 90° CCW from inlet  BA No. 2 outlet 135° CCW from inlet  No. 2 outlet opposite inlet
    BB No. 2 outlet 45° CCW from inlet  No. 2 outlet 90° CCW from inlet
    BC No. 2 outlet 45° CW from inlet  No. 2 outlet inline with inlet
    BD No. 2 outlet 135° CW from inlet  No. 2 outlet 90° CW from inlet




    Outlet positions All series except 4535V 4535V
    No. 1 outlet inline with inlet  CA No. 2 outlet 135° CCW from inlet  No. 2 outlet opposite inlet
    CB No. 2 outlet 45° CCW from inlet  No. 2 outlet 90° CCW from inlet
    CC No. 2 outlet 45° CW from inlet  No. 2 outlet inline with inlet
    CD No. 2 outlet 135° CW from inlet  No. 2 outlet 90° CW from inlet
    No. 1 outlet 90° CW from inlet  DA No. 2 outlet 135° CCW from inlet  No. 2 outlet opposite inlet
    DB No. 2 outlet 45° CCW from inlet  No. 2 outlet 90° CCW from inlet
    DC No. 2 outlet 45° CW from inlet  No. 2 outlet inline with inlet
    DD No. 2 outlet 135° CW from inlet  No. 2 outlet 90° CW from inlet



    More pics

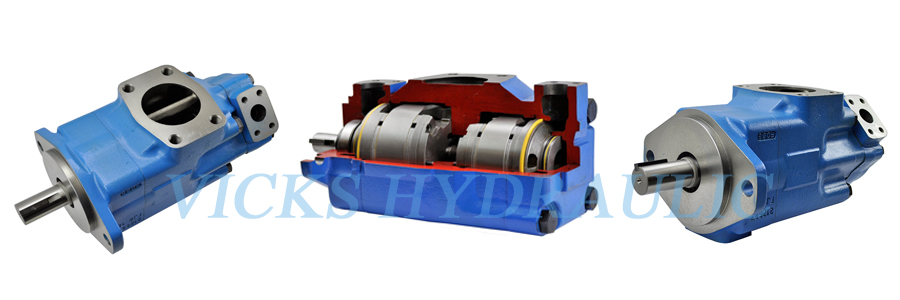

    Vickers Q 双泵.jpg
