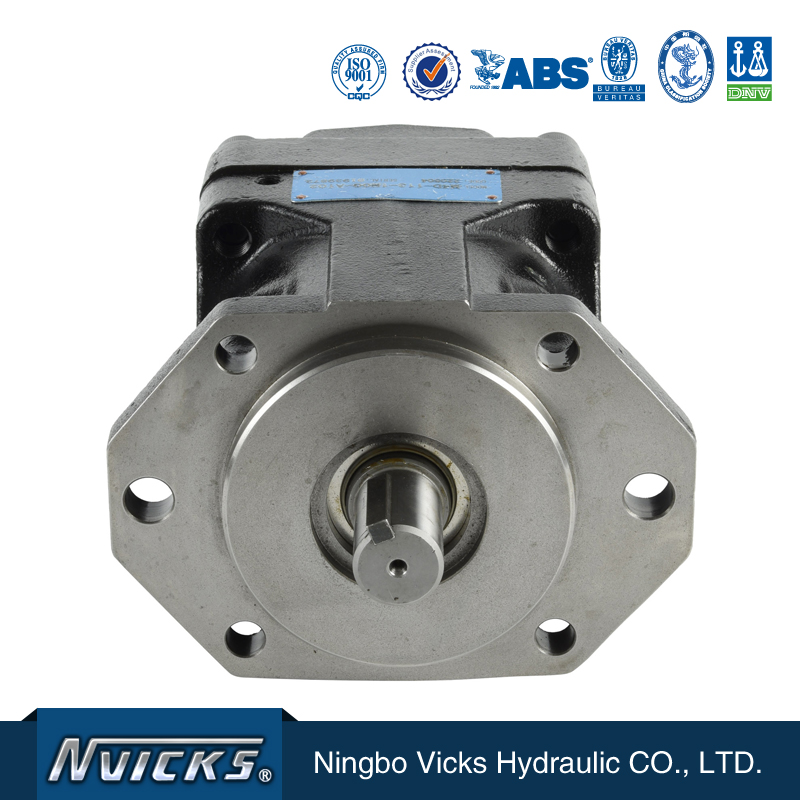

Denison Vane Motor Medium Duty Vane Kits Hydraulic Motor 210Bar M4D M4SD

Short Description:

Our  company Our company is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo  motor, Yunshen servo motor, Haitain drive and Sumitomo pump. Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high quality, high efficiency, low consumption, safety. Our company has became a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy ...


  • Name : Vane Motor
  • Model: M4D113-1N00 A102
  • Displacement : 116.7ml/r
  • Torque : 1.860 Nm/bar
  • Max pressure : 210bar
  • Max speed : 2500rpm at continuous
  • Min pressure : 80bar
  • Direction of Rotation: Bi-directional
  • Brand : Nvicks
  • Package : Single packed with foam
  • Product Detail

    Product Tags

    Our  company

    Our company is general channel business of Taiwan Delta, Austria KEBA product industry. Its the strategic partner of Phase servo  motor, Yunshen servo motor, Haitain drive and Sumitomo pump.

    Ningbo Vicks adhering to the development path of introduction, innovation and transcendence, and the business philosophy of high quality, high efficiency, low consumption, safety. Our company has became a world-renowned hydraulic pump manufacturer and one-stop solution expert of servo energy saving.

    Factory Manufacturing China Vickers Bomba V10 V20 V2010 Hydraulic Vane Pump and Spare Parts

    M4C, M4D, M4E have been specifically designed for longer life in severe duty applications that require high pressures up to 230 bar, high speed up to 4000 RPM and low fluid lubricity.

    The vane, rotor and cam ring are pressure balanced to increase the motor lifetime  and efficiency over the full speed range. The high starting torque efficiency allows the motor to start under high load without pressure overshoots, jerks and high instantaneous horsepower loads.

    Features

    Improved Performance : When operating at very low speeds on applications such as swing and load hoist drives, the vane motor exhibits very low torque ripple.

    Enhanced Lifetime : Vane motors begin life with high volumetric efficiency and maintain that efficiency throughout their operating life.
    Easy Installation: The high starting torque efficiency of the vane type motors allows them to start under high load without pressure overshoots, jerks and high instantaneous horsepower loads.



    M4D detail

    Model Designation

    M4C 067 -1 N 00 A 1 02
    Series ml/r
    Displacement
    Shaft type Rotation Port position Design No. Sealing level Oil port
    M4C 024 (24.2) 1- Straight key shaft
    2- Straight key shaft
    3- Spline shaft
    N: Two-way
    A: Clockwise
    B: anti-clockwise
    See below A 1- NBR Nitrile rubber
    5- Fluororubber
    See picture below
    027 (28.2)
    031 (34.5)
    043 (46.5)
    055 (58.8)
    067 (71.1)
    075 (80.1)
    M4D 062 (65.1)
    074 (76.8)
    088 (91.1)
    102 (105.5)
    113 (116.7)
    128 (132.4)
    138 (144.4)
    M4E 153 (158.6)
    185 (191.6)
    214 (222.0)

    Application




    Advanced Equipment




    Certificate




    Our services




    RFQ

    1. Customer: Can I get 1pcs sample to test the quality?

    Vicks say: Yes, we would like to sell 1pcs sample for you to test.

    2.  Customer: If there is something technical problem, how do you to help us.

    Vicks say: we will send you video and operations guide, which we will teach you to understand how to solve it.

    3. Customer: How many days for mass production?

    Vicks say: About 25-35days after the order is confirmed.

    4. Customer: OEM or my logo can put on your product.

    Vicks say: Yes, OEM is accept if your quantity is satisfied with customs-made.

    5. Customer: whats shipping method we can take.

    Vicks say: In the fact, we can prepare as the weight of your order. If it is small packages, with less weight, we suggest that you can choose Express service, such as Fedex, DHL or you can choose sea shipment or air shipment for your big order with heavy weight.
