Special Design for T6 Series Double Pump for Swaziland Manufacturer
Special Design for T6 Series Double Pump for Swaziland Manufacturer Detail:
High pressure and high performance dowel pin type vane pumps widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-machinery.
Features
1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime
2. This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and worked at high temperature.
3. As the vane pump adopts bilabial vane, it has high oil pollution resistance and wide speed scope.
| NO. | Part | Qty | NO. | Part | Qty | NO. | Part | Qty |
| 1 | Shaft | 1 | 6 | Cir Clip For Shaft | 2 | 11 | Middle Body | 1 |
| 2 | Straight Key | 1 | 7 | Ball Bearing | 1 | 12 | Rear Cartridge | 1 |
| 3 | Hexagon Head Bolt | 4 | 8 | Cir Clip For Hole | 1 | 13 | Rectangle Seal Ring | 1 |
| 4 | Front Cover | 1 | 9 | Rectangle Seal Ring | 1 | 14 | Rear Cover | 1 |
| 5 | Shaft Seal | 1 | 10 | Front Cartridge | 1 | 15 | Hexagon Head Bolt | 4 |
Model Designation
| T6CC | S | W | -025 | -17 | -1 | R | 02 | -C | 1 | 10 |
| Series | Type Code |
Vice Type Code |
Flow-shaft end Pump |
Flow-cover end pump | Shaft type |
Rotation | Port positions |
Design number |
Sealing Level |
Port dimensions |
| T7BB | NO: USE ISO 3019 Installation Flange S: USE SAE C J744 installation flange |
NO | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | See size of shaft | (Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise |
see picture below | C | 1-S1 NBR Nitrile rubber 5-S5, Fluororubber |
00、01, See installation dimensions |
| T7DB | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | 00、01, M1 See installation dimensions | |||||||
| T7DD | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | – | |||||||
| T7EB | 042、045、050、052、054、057、062、066、072、085 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | ||||||||
| T7ED | 042、045、050、052、054、057、062、066、072、085 | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | ||||||||
| T7EE | 042、045、050、052、054、057、062、066、072、085 | 042、045、050、052、054、057、062、066、072、085 | ||||||||
| T67CB | NO: industrial type M: truck type P: truck type double seal kits S: truck type, SAE SAE C J744 installation flange |
W: Heavy str keyed shaft | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | ||||||
| T6CC | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | 00、01, 10、11, See installation dimensions | |||||||
| T67DB | 014/B14、017/B17、020/B20、024/B24、028/B28、031/B31、035/B35、038/B38、042/B42、045/B45、050/B50、061 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | – | |||||||
| T67DC | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | 00、01, M1 See installation dimensions | |||||||
| T6DC | 014、017、020、024、028、031、035、038、042、045、050、061 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | – | |||||||
| T67EB | 042、045、050、052、057、062、066、072、085 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | ||||||||
| T6EC | 042、045、050、052、057、062、066、072、085 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | ||||||||
| T67EC | 042、045、050、052、057、062、066、072、085 | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31 | ||||||||
| T6ED | 042、045、050、052、057、062、066、072、085 | 014/B14、017/B17、020/B20、024/B24、028/B28、031/B31、035/B35、038/B38、042/B42、045/B45、050/B50、061 | ||||||||
| T6EE | 042、045、050、052、057、062、066、072、085 | 042、045、050、052、057、062、066、072、085 |

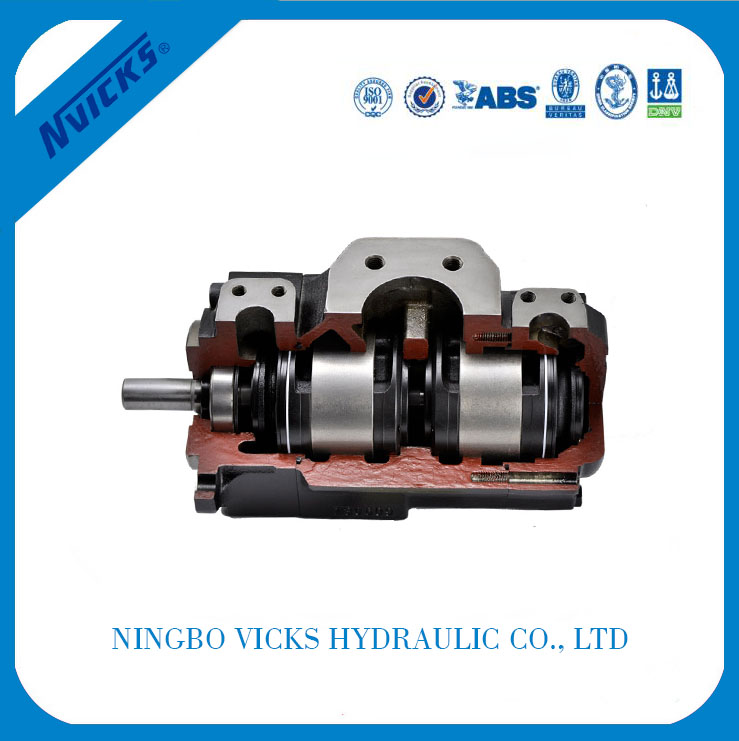

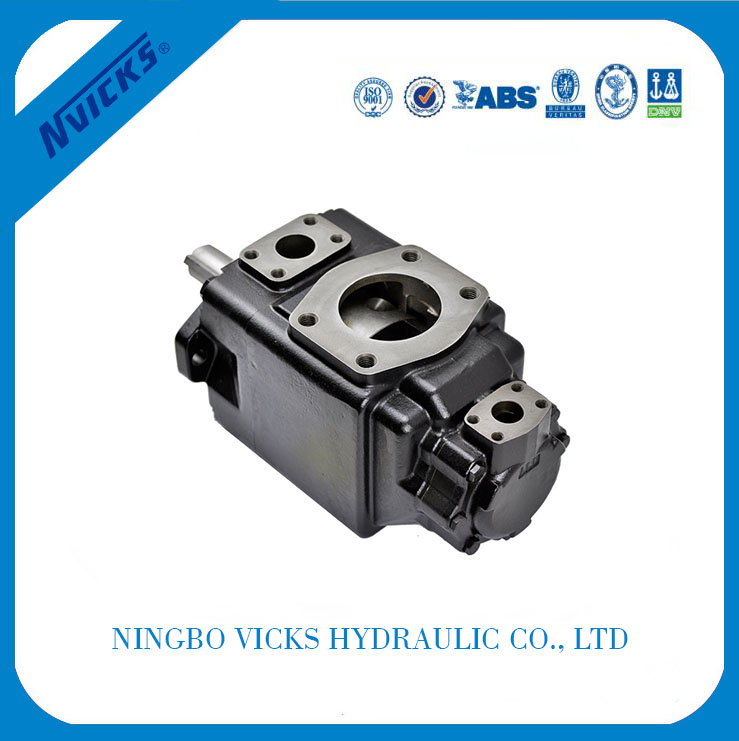

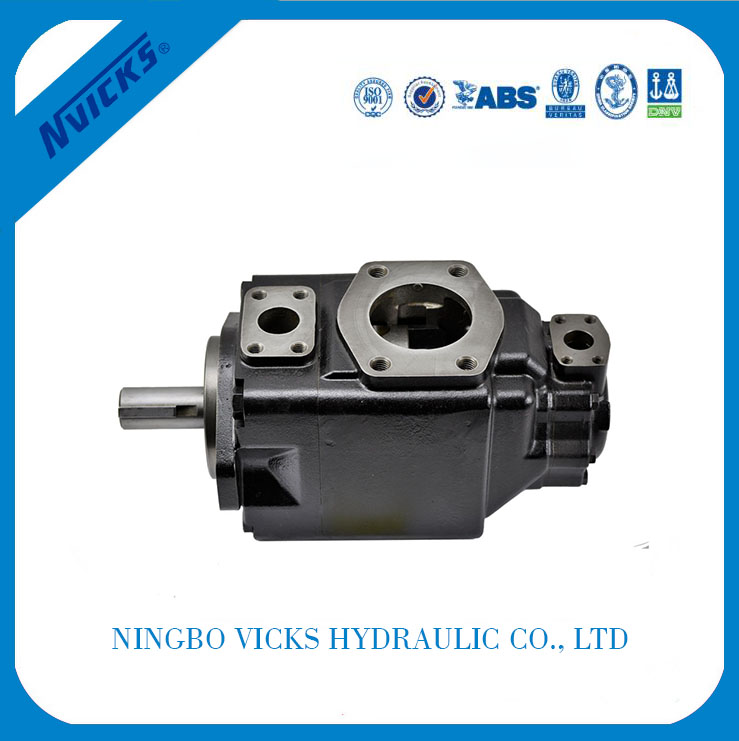

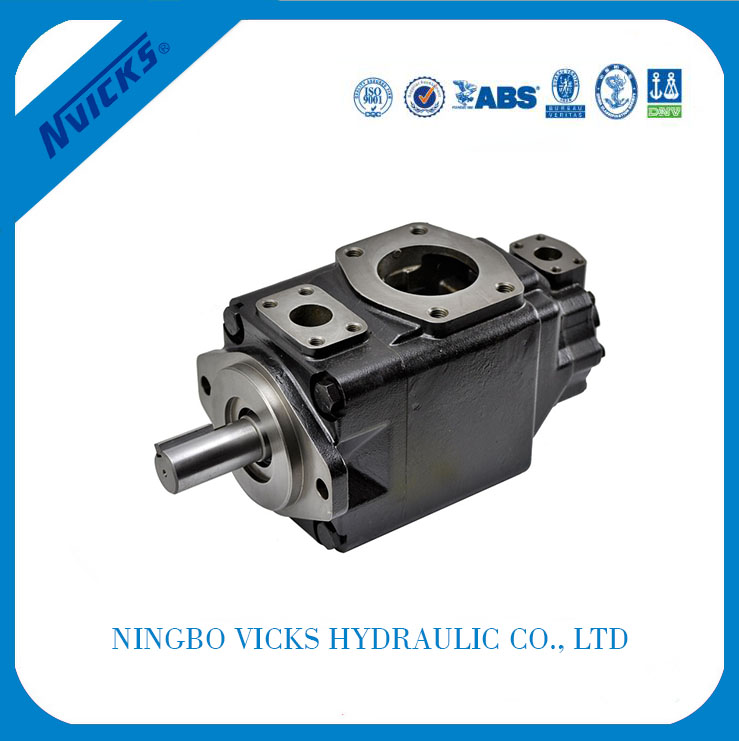

Product detail pictures:
