OEM/ODM Manufacturer T6GCC Series Double Pump for Doha Manufacturer Detail:
T6GC﹑T7GB﹑T6GCC﹑T67GCB﹑T7GBB Series-pin Vane Pumps
The high pressure and high performance pin type vane pump is applicable to engineering machinery, especially to mobile machinery.
The main features:
1. The improved bearing structure and rectangle spline shaft design can be driven by motor or gearbox directly.
2. Double shaft seal structure, is fit for bad situations of mobile machinery.
3. Adopt insert structure, the cartridge kit of T6C and T7B can be interchangeable completely, very convenient for repair.
< Model Designation
| T6GCC | -B25 | -B17 | -6 | R | 02 | -B | 1 | 10 |
| Series | Flow-shaft end Pump | Flow-cover end Pump | Shaft type | Rotation | Port positions | Design number |
Sealing Level |
Port dimensions |
| T6GCC | B03、B05、B06、B08、B10、B12、B14、B17、B20、B22、B25、B28、B31 | B03、B05、B06、B08、B10、B12、B14、B17、B20、B22、B25、B28、B31 | See size of shaft | (Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise |
see below | B | 1-S1, NBR Nitrile rubber 5-S5, Fluororubber |
00、01、10、11, See installation dimensions |
| T67GCB | B03、B05、B06、B08、B10、B12、B14、B17、B20、B22、B25、B28、B31 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | ||||||
| T7GBB | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 |
B03: B means the two steering valve plate structure
The data of relevant series, model are unanimous. Please see T6 series-single pumps data
Installation Dimensions
| Oil port | Flange | Install Dimensions(mm) | ||||||
| A1 | B1 | ∅C1 | D1 | T1 Thread | ||||
| T6GCC T67GCB T7GBB | P1 | 1" | F08 | 26.2 | 52.4 | 25.4 | 76.2 | 3/8"-16UNCx19.0 |
| P2 | 01&11: 3/4" | F06 | 22.2 | 47.6 | 19.0 | 76.2 | 3/8"-16UNCx19.0 | |
| 00&10" 1" | F08 | 26.2 | 52.4 | 25.4 | 74.7 | |||
| S | 10&11: 2-1/2" | F20 | 50.8 | 88.9 | 63.5 | 84.1 | 1/2"-13UNCx23.9 | |
| 00&01: 3" | F24 | 61.9 | 106.4 | 76.2 | 84.1 | 5/8"-11UNCx28.4 | ||

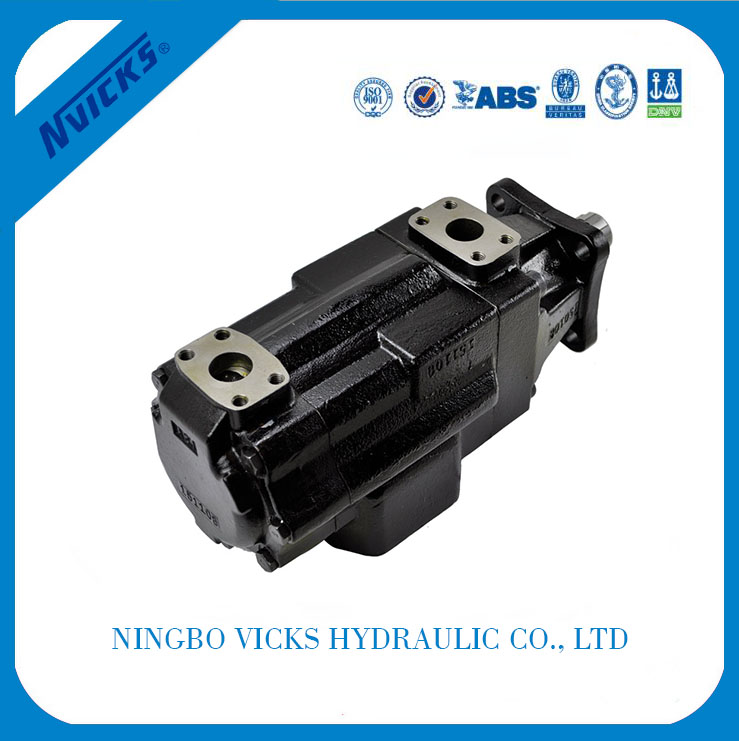

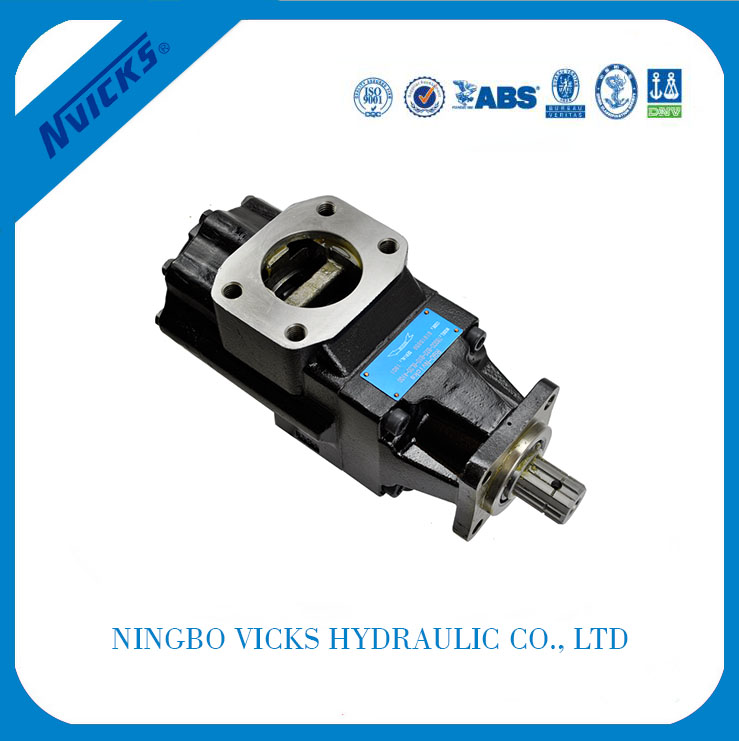

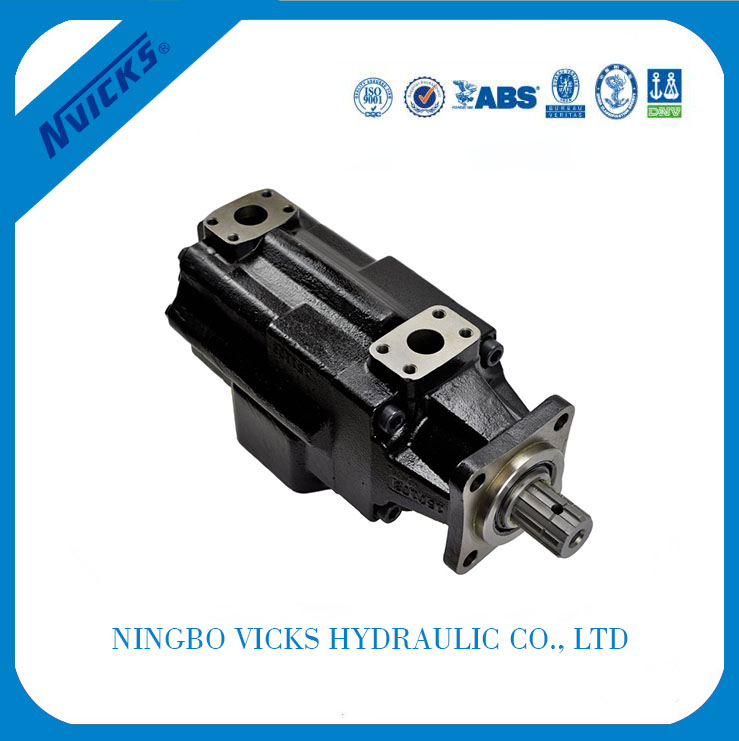

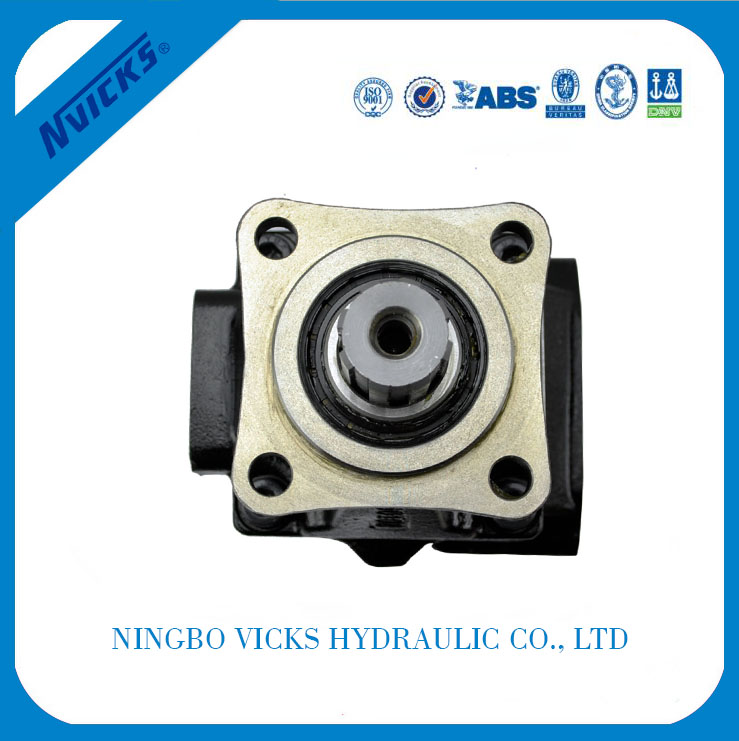

Product detail pictures:
