Manufacturer for SQP Series Single Pump for Jordan Manufacturer Detail:

Applicable to industrial application of the cluster of lower noise vane pump

This series vane pumps are high pressure and high performance intra-vane pumps, which are specially developed for low noise working condition. They are widely applied in hydraulic system for machine-tools, presses, die casting machines, engineering, plastic injection moulding and other machineries, which call for lower noise. Main characteristics;

1.Cartridge kits are entirely design similar to those of VICKERS stable V series pumps, which can be interchanged with cartridge kits of SQP series.
2.New configuration design gets an excellent performance in restraining pulsing and noise.
3.Strengthened pump housing design offers a better anti-vibration ability, which effect the remarkable low noise.

Model Designation

(F3-)	SQP2	-21	-86	C	(F)	-(LH)	-18
Infuse front, oil intermiscibility	Series	▲Displacement code	Shaft code	Outlet Positions	Installation type	Rotation	Design number
No-marking: Anti-wear hydraulic oil, Water glycol-fluid or water-oil emulsionsF F3- phosphate ester fluid	SQP1	2、3、4、5、6、7、8、 9、10、11、12、14	1- Belt key straight shaft 86- Heavy belt key straight shaft	(Views from cover end of pump) A-outlet opposite inlet B-outlet 90°CCW from inlet C- outlet inline with inlet D-outlet 90°CW from inlet	No-marking Flange Mounting F-Foot Mountion	(Views from shaft end of pump) Left hand for counter-clockwise No marking- Right hand for clockwise	15
	SQP2	10、12、14、15、17、 19、21、25					18
	SQP3	21、25、30、32、35、 38、45
	SQP4	42、45、50、57、60、 66、75

▽Usgpm Flow(Usgpm) at 1200r/min and 0.69MPa

Technical Data

Series	●Displacement code	Geometric displace-ment mL/r	With antiwear hydraulic oil or phosphate ester fluid		With water glycol fluid		With water-oil emulsions		Min. speed (r/min)
			Max. pressure Mpa	Max. Speed r/min	Max. pressure Mpa	Max. Speed r/min	Max. pressure Mpa	Min. speed r/min
SQP1	2	7.5	13.8	1800	13.8	1200	6.9	1200	600
	3	10.2
	4	12.8	17.2		15.9
	5	16.7
	6	19.2
	7	22.9
	8	26.2
	9	28.8
	10	31.0
	11	35.0
	12	37.9	15.7		13.8
	14	44.2	13.8
SQP2	10	32.5	17.2	1800	13.8	1200	6.9	1200	600
	12	38.3			15.9
	14	43.3
	15	46.7
	17	52.5
	19	59.2
	21	65.0
	25	79.2			13.8
SQP3	21	66.7	17.2	1800	15.9	1200	6.9	1200	600
	25	79.2
	30	95.0
	32	100
	35	109
	38	118
	45	140	13.8		13.8
SQP4	42	134	17.2	1800	15.9	1200	6.9	1200	600
	45	140
	50	156
	57	178
	60	189
	66	207
	75	237	13.8		13.8

▽Usgpm Flow(Usgpm) at 1200r/min and 0.69MPa,Permit surpassing the top pressure 10% instataneous pressure.

Series	Speed r/min	Output flow L/min				Input Power KW
Series	Speed r/min	0.69Mpa	6.9Mpa	13.8Mpa	17.2Mpa	0.69Mpa	6.9Mpa	13.8Mpa	17.2Mpa
SQP1-2	1000	7.5	6.0	4.5		0.2	1.2	2.1
	1200	9.5	8.5	6.5		0.3	1.5	2.5
	1500	11.2	9.3	7.5		0.3	1.8	3.2
	1800	13.5	11.2	9.0		0.4	2.2	3.8
SQP1-3	1000	10.2	8.8	7.4		0.3	1.5	3.1
	1200	12.5	11.0	9.5		0.4	1.8	3.7
	1500	15.3	13.7	12.1		0.5	2.3	4.7
	1800	18.4	16.9	15.3		0.5	2.7	5.6
SQP1-4	1000	12.8	12.3	10.8	10.0	0.4	1.8	3.7	4.5
	1200	16.0	15.0	13.5	13.0	0.5	2.2	4.4	5.5
	1500	19.2	17.7	16.2	15.7	0.6	2.7	5.6	6.9
	1800	23.1	21.3	19.5	19.0	0.7	3.2	6.7	8.3
SQP1-5	1000	16.7	15.7	14.7	14.2	0.4	2.8	4.8	6.0
	1200	20.0	19.0	18.0	17.5	0.5	3.2	5.8	7.2
	1500	25.0	24.0	23.0	22.5	0.6	3.9	7.3	9.0
	1800	30.0	29.0	28.0	27.5	0.6	4.2	8.6	10.7
SQP1-6	1000	19.2	18.2	17.0	16.2	0.4	3.0	5.5	6.6
	1200	23.0	22.0	20.5	20.0	0.5	3.5	6.5	7.9
	1500	28.5	27.5	26.0	25.0	0.6	4.3	8.1	9.8
	1800	34.5	33.5	32.0	31.0	0.7	5.2	9.7	11.8
SQP1-7	1000	22.9	21.4	19.9	18.9	0.5	3.4	6.2	7.6
	1200	27.5	26.0	24.5	23.5	0.6	4.0	7.4	9.1
	1500	34.4	32.9	31.4	30.4	0.7	5.0	9.2	11.3
	1800	41.3	39.8	38.3	37.3	0.8	5.9	11.0	13.6
SQP1-8	1000	26.2	24.2	22.7	21.2	0.5	3.9	6.7	8.3
	1200	31.5	29.5	28.0	26.5	0.6	4.5	8.0	10.0
	1500	39.4	37.4	35.9	34.4	0.8	5.5	10.0	12.5
	1800	47.2	45.2	43.7	42.2	0.8	6.6	11.8	14.8
SQP1-9	1000	28.8	26.8	25.3	23.8	0.5	4.2	7.0	8.6
	1200	34.5	32.5	31.5	30.0	0.6	5.0	8.5	10.5
	1500	43.2	41.2	39.7	38.2	0.8	5.9	10.4	12.9
	1800	51.8	49.8	48.3	46.8	0.9	7.1	12.3	15.3
SQP1-10	1000	31.0	29.0	26.5	25.5	0.6	4.8	9.1	11.3
	1200	37.2	35.2	32.7	31.7	0.8	5.7	11.0	13.7
	1500	46.5	44.5	42.0	41.0	0.9	6.8	13.7	17.0
	1800	55.8	53.6	51.1	50.1	1.0	8.3	16.2	20.3
SQP1-11	1000	35.0	33.0	30.5	29.5	0.7	4.9	9.2	11.4
	1200	42.0	40.0	37.5	36.5	0.8	5.7	11.0	13.7
	1500	52.5	50.5	48.0	47.0	1.0	6.9	13.8	17.1
	1800	63.2	61.0	58.8	57.5	1.0	8.3	16.2	20.3
SQP1-12	1000	37.9	36.4	34.4		0.7	5.6	10.4
	1200	45.5	44.0	42.0		0.9	6.5	12.5
	1500	56.9	55.4	53.4		1.1	7.9	15.6
	1800	68.2	66.7	64.7		1.1	9.4	18.4
SQP1-14	1000	44.2	42.7	40.7		1.0	6.6	12.2
	1200	53.0	51.5	49.5		1.1	7.8	14.6
	1500	66.0	64.0	62.0		1.3	9.6	18.2
	1800	79.5	77.5	75.5		1.4	11.5	21.7

SQP2-10	1000	32.5	29.5	26.0	24.5	0.9	4.9	9.3	11.3
	1200	39.0	36.0	32.5	31.0	1.0	5.8	11.1	13.5
	1500	48.8	45.8	42.3	40.8	1.2	7.2	13.8	16.8
	1800	58.5	55.5	52.0	50.5	1.3	8.5	16.5	20.1
SQP2-12	1000	38.3	35.9	33.3	31.8	1.0	5.7	10.9	13.4
	1200	46.0	43.6	41.0	39.5	1.1	6.5	13.0	16.0
	1500	57.5	55.1	52.5	51.0	1.3	8.3	16.1	19.9
	1800	69.0	66.6	64.0	62.5	1.4	9.8	19.3	23.8
SQP2-14	1000	43.3	40.2	36.8	35.8	1.2	6.4	12.2	15.1
	1200	52.0	48.5	45.5	44.5	1.3	7.5	14.5	18.0
	1500	65.0	61.9	58.5	57.5	1.5	9.4	18.0	22.4
	1800	78.0	74.9	71.5	70.5	1.7	11.1	21.5	26.7
SQP2-15	1000	46.7	43.7	40.7	39.2	1.2	6.8	13.0	15.9
	1200	56.0	53.0	50.0	48.5	1.3	8.0	15.5	19.0
	1500	70.0	67.0	64.0	62.5	1.5	9.9	19.3	23.6
	1800	84.0	81.0	78.0	76.5	1.7	11.8	23.0	28.3
SQP2-17	1000	52.5	49.7	46.5	44.5	1.4	7.4	14.3	17.6
	1200	63.0	60.6	57.0	55.0	1.5	9.0	17.0	21.0
	1500	78.8	76.0	72.8	70.8	1.7	10.8	21.1	26.1
	1800	94.5	91.7	88.5	86.5	1.9	12.9	25.1	31.2
SQP2-19	1000	59.2	56.2	53.2	50.2	1.5	8.5	16.0	20.1
	1200	71.0	68.0	65.0	62.0	1.7	10.0	19.0	24.0
	1500	88.7	85.7	82.7	79.7	1.9	12.3	24.1	29.8
	1800	106.5	103.7	100.7	97.7	2.2	14.7	28.2	35.7
SQP2-21	1000	65.0	62.2	59.0	57.0	1.6	9.2	17.6	21.8
	1200	78.0	75.0	72.0	70.0	1.8	11.0	21.0	26.0
	1500	97.5	94.7	91.5	89.5	2.1	13.4	26.1	32.3
	1800	117	114	111	109	2.3	16.0	31.1	38.6

SQP3-21	1000	66.7	60.7	54.7	51.7	1.6	8.9	16.8	20.6
	1200	80	74.0	68.0	65.0	1.8	10.5	20.0	24.5
	1500	100	94.0	88.0	85.0	2.0	12.9	24.8	30.4
	1800	120	114	108.0	105.0	2.3	15.4	30.5	36.4
SQP3-25	1000	79.2	73.5	67.2	64.2	1.8	10.7	20.5	25.1
	1200	95	89	83.0	80.0	2.0	12.5	24.5	30.0
	1500	119	113	107.0	104.0	2.3	15.7	30.4	37.3
	1800	142	136	130.0	127.0	2.6	18.7	36.4	44.6
SQP3-30	1000	95	88.4	81.0	78.0	1.8	12.6	24.7	30.5
	1200	114	107	100	97.0	2.0	15.0	29.5	36.5
	1500	142	136	128	125.0	2.4	18.6	36.7	45.5
	1800	171	164	157	154.0	2.7	22.2	44.0	54.5
SQP3-32	1000	100	92	85	82.0	2.1	13.5	26.0	32.2
	1200	120	112	105	102	2.3	16.0	31.0	38.5
	1500	150	142	135	132	2.7	19.8	38.6	47.9
	1800	180	172	165	162	3.1	23.6	46.1	57.4
SQP3-35	1000	109	103	95.2	92.2	2.2	14.2	27.6	34.3
	1200	131	124	117	114	2.5	17.0	33.0	41.0
	1500	164	157	150	147	2.9	20.9	41.0	51.0
	1800	196	189	182	179	3.3	24.9	50.4	61.0
SQP3-38	1000	118	111	102	99.3	2.7	15.5	29.8	36.9
	1200	142	134	126	123	3.0	18.5	35.5	44.0
	1500	177	170	161	158	3.4	22.7	44.0	54.7
	1800	213	205	197	194	3.9	27.0	52.6	65.4
SQP3-45	1000	140	131	121	116	2.9	17.9	35.4	43.7
	1200	168	159	149	144	3.2	21.2	42.2	52.2
	1500	210	201	190	185	3.7	26.2	53.5	64.9
	1800	252	243	233	228	4.2	31.2	62.7	77.7

SQP4-42	1000	134	125	115	110	2.7	17.7	35.2	43.5
	1200	161	152	142	137	3.0	21.0	42.0	52.0
	1500	201	192	182	177	3.5	26.0	52.3	64.7
	1800	241	232	222	217	4.0	31.0	62.5	77.5
SQP4-45	1000	140	131	121	116	2.9	17.9	35.4	43.7
	1200	168	159	149	144	3.2	21.2	42.2	52.2
	1500	210	201	190	185	3.7	26.2	53.5	64.9
	1800	252	243	233	228	4.2	31.2	62.7	77.7
SQP4-50	1000	156	147	137	132	3.1	20.2	39.4	49.3
	1200	187	178	168	163	3.5	24.0	47.0	59.0
	1500	234	225	215	210	4.0	29.7	58.5	73.4
	1800	280	271	261	256	4.7	35.4	69.9	87.9
SQP4-57	1000	178	168	157	151	3.8	22.9	45.1	53.7
	1200	213	203	192	186	4.3	27.3	55.2	65.8
	1500	269	259	248	242	5.0	3.6	66.3	82.5
	1800	320	10	299	292	5.7	39.3	75.5	97.3
SQP4-60	1000	189	178	166	160	4.0	24.4	46.9	58.6
	1200	227	216	204	198	4.5	29.0	56.0	70.0
	1500	284	273	261	255	5.2	35.8	69.6	87.1
	1800	340	329	317	311	5.9	42.7	83.2	104.0
SQP4-66	1000	207	195	182	174	4.4	26.7	51.4	62.9
	1200	248	236	223	215	4.9	31.6	61.2	76.0
	1500	310	298	285	277	5.6	39.0	76.0	94.6
	1800	372	60	347	339	6.4	46.7	91.0	113.3
SQP4-75	1000	237	223	208	200	5.0	30.5	58.7	73.2
	1200	284	269	255	247	5.6	36.1	70.0	87.3
	1500	355	340	326	318	6.5	44.5	86.9	108.0
	1800	426	411	397	389	7.3	53.5	104.1	130.0

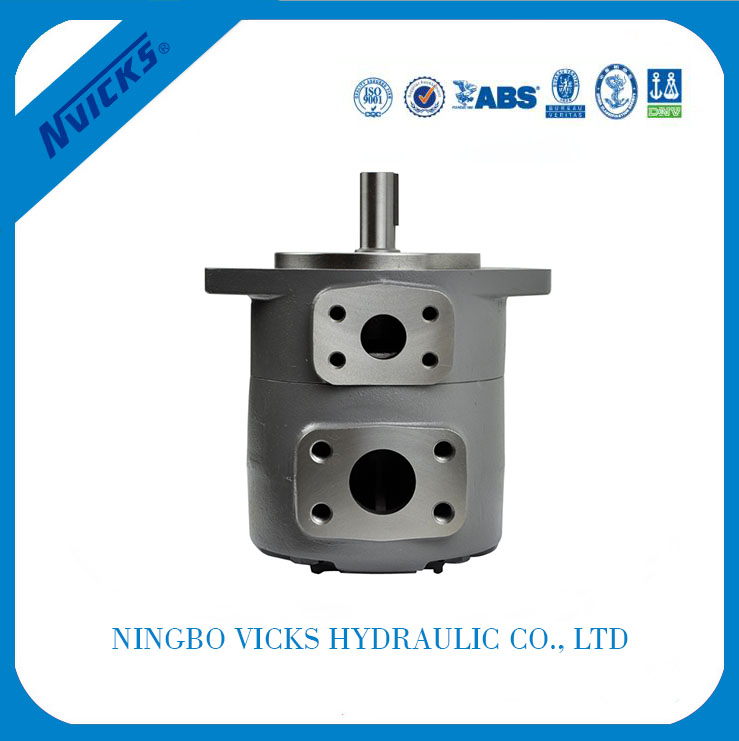

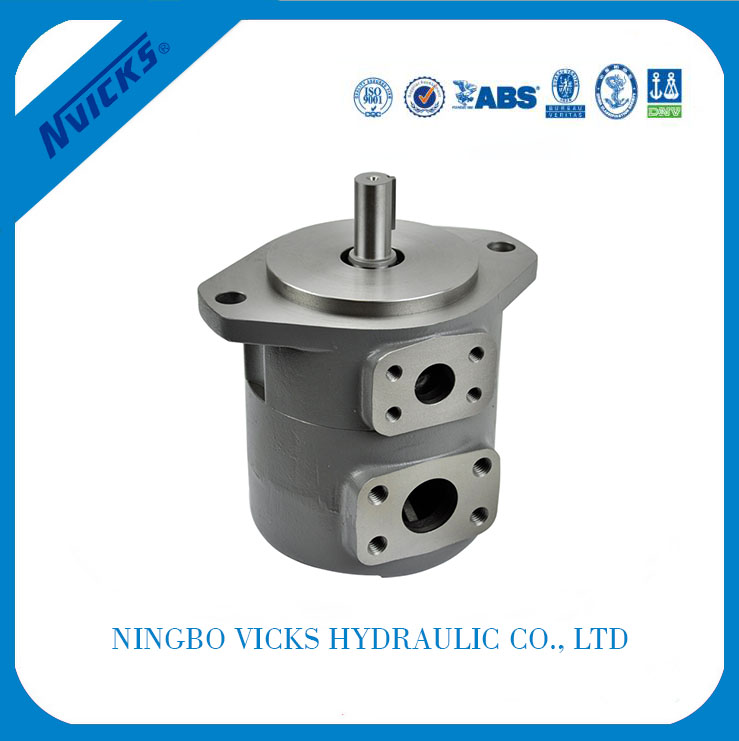

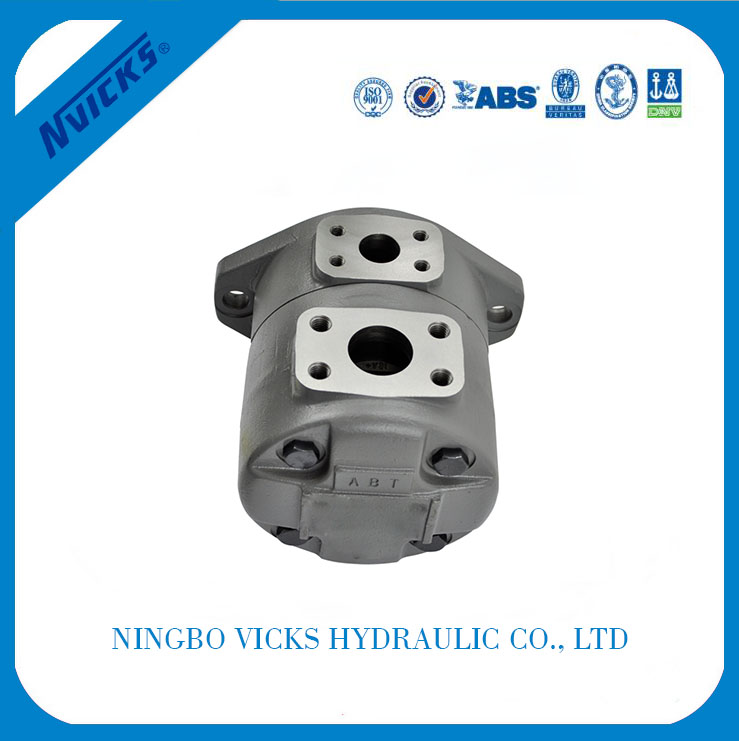

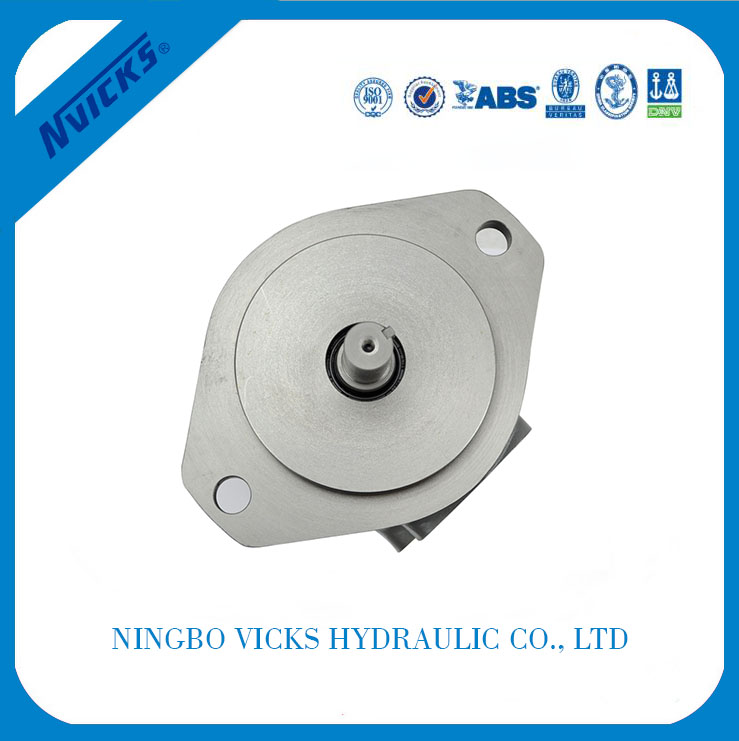

Product detail pictures:
