High definition Vicks Servo Motor for Ukraine Factories
High definition Vicks Servo Motor for Ukraine Factories Detail:
Servo motor paramter table
Size | Nomin
altorque |
Locked-rotor torque |
Bases
peed |
Maximum
Speed |
Nomina
lCurrent |
Locked-rotor torque |
Nomina
lPower |
Torque
constat |
Nominal Frequncy |
Winding Resistance |
Winding Inductanle |
Nominal Voltage |
Interia withbrake Opeion |
||||
Nm | Nm | Rpm | Rpm | Arms | Arms | KW | Nm/Arms | Hz | Ohm | mH | V | Kgm210-3 | |||||
U1004F.15.3 | 38 | 39 | 1500 | 1950 | 11.6 | 12 | 6 | 3.32 | 100 | 1.67 | 16.33 | 350 | 6 | ||||
U1004F.17.3 | 38.9 | 40.4 | 1700 | 2150 | 15.2 | 15.8 | 7.6 | 2.81 | 113.4 | 1.19 | 16 | 381 | 6 | ||||
U1004F.20.3 | 42 | 44 | 2000 | 2450 | 18.8 | 19.6 | 8.7 | 2.37 | 133.4 | 0.85 | 8.33 | 321 | 6 | ||||
U1005F.15.3 | 55 | 60.7 | 1500 | 1950 | 16.6 | 20.2 | 8.6 | 3.31 | 100 | 0.97 | 14.6 | 300 | 6.1 | ||||
U1005F.17.3 | 57 | 59.5 | 1700 | 2150 | 20.4 | 23.3 | 10 | 2.81 | 113.4 | 0.72 | 10.6 | 336 | 6.1 | ||||
U1005F.20.3 | 58 | 60.7 | 2000 | 2450 | 24.3 | 25.7 | 12 | 2.6 | 133.4 | 0.6 | 9 | 364 | 6.1 | ||||
U1007F.15.3 | 74 | 81.6 | 1500 | 1950 | 23.9 | 26.5 | 11.6 | 3.37 | 100 | 0.665 | 11.4 | 329 | 9 | ||||
U1007F.17.3 | 80 | 83 | 1700 | 2150 | 28.2 | 31.8 | 14 | 2.85 | 113.4 | 0.48 | 8.09 | 341 | 9 | ||||
U1007F.20.3 | 87 | 92 | 2000 | 2450 | 36.7 | 38.3 | 18.2 | 2.53 | 133.4 | 0.356 | 4.74 | 341 | 9 | ||||
U1008F.15.3 | 103 | 106.1 | 1500 | 1950 | 33.2 | 34.6 | 16.4 | 3.38 | 100 | 0.473 | 9.05 | 370 | 9.8 | ||||
U1008F.17.3 | 96.2 | 99.6 | 1700 | 2150 | 35.1 | 36.8 | 17.6 | 2.98 | 113.4 | 0.417 | 7.04 | 370 | 9.8 | ||||
U1008F.20.3 | 95.6 | 99.6 | 2000 | 2450 | 40.1 | 42.5 | 20.4 | 2.58 | 133.4 | 0.314 | 5.29 | 370 | 9.8 | ||||
U1010F.15.3 | 128 | 130.2 | 1500 | 1950 | 41 | 42.9 | 20 | 3.3 | 100 | 0.338 | 7.38 | 360 | 12 | ||||
U1010F.17.3 | 122 | 126.6 | 1800 | 2250 | 44 | 48.7 | 23 | 2.87 | 120 | 0.273 | 5.42 | 312 | 12 | ||||
U1010F.20.3 | 135 | 139 | 2000 | 2450 | 60.5 | 61.8 | 28.3 | 2.37 | 133.4 | 0.181 | 2.78 | 321 | 12 | ||||
U1013F.15.3 | 186 | 190 | 1500 | 1950 | 61 | 63.8 | 29 | 3.26 | 100 | 0.249 | 3.7 | 370 | 15 | ||||
U1013F.17.3 | 164.1 | 169.5 | 1700 | 2150 | 55.4 | 58.5 | 28.7 | 3.19 | 113.4 | 0.236 | 5.03 | 380 | 15 | ||||
U1013F.20.3 | 175 | 185 | 2000 | 2450 | 73.7 | 77.3 | 36.7 | 2.53 | 133.4 | 0.144 | 2.37 | 340 | 15 | ||||
U1015F.15.3 | 220 | 225 | 1500 | 2000 | 72.73 | 80.93 | 37 | 3.096 | 100 | 0.18 | 4.029 | 370 | 19 | ||||
U1015F.20.3 | 215 | 223 | 2000 | 2500 | 96 | 106.8 | 49 | 2.322 | 133.4 | 0.103 | 2.266 | 371 | 19 | ||||
U1315F.15.3 | 196 | 198 | 1500 | 2000 | 71.48 | 72.51 | 31 | 3.015 | 100 | 0.169 | 6.458 | 378 | 27 | ||||
U1315F.20.3 | 191 | 196 | 2000 | 2500 | 97.76 | 100.2 | 43 | 2.154 | 133 | 0.089 | 3.295 | 380 | 27 | ||||
U1320F.15.3 | 210 | 210 | 1500 | 1950 | 62 | 62 | 33 | 3.43 | 100 | 0.098 | 4.46 | 369 | 36 | ||||
U1320F.17.3 | 229 | 236 | 1700 | 2150 | 92.6 | 98.3 | 39.4 | 2.94 | 113.4 | 0.107 | 4.5 | 377 | 36 | ||||
U1320F.18.3 | 232 | 240 | 1800 | 2250 | 96.46 | 99.8 | 44 | 2.64 | 120 | 0.085 | 3.647 | 379 | 36 | ||||
U1320F.20.3 | 269 | 286 | 2000 | 2450 | 120.7 | 127.8 | 56.3 | 2.37 | 133.4 | 0.068 | 2.13 | 347 | 36 | ||||
U1330F.15.3 | 380 | 416 | 1500 | 1950 | 106 | 117 | 60 | 3.56 | 100 | 0.082 | 3.19 | 280 | 49 | ||||
U1330F.17.3 | 349 | 363 | 1700 | 2150 | 145 | 153.4 | 62 | 2.89 | 113 | 0.06 | 2.9 | 268 | 49 | ||||
U1330F.20.3 | 389 | 417 | 2000 | 2450 | 155 | 166 | 81 | 2.67 | 133 | 0.046 | 1.8 | 286 | 49 |
Note: 1. Max. speed: If you don’t use the flax-weakening control function, the max rotagig speed will be higwer 500rpm than rated speed. If you use the flax-weakening control function, the max. rotatig speed depends on the driue.
2. Pole Number: The pole number is 8 rooles frabove, it's 4 pairs of rodes.
Installation Size:
The motor's spindle wses the standard shaft coptic axis or with single bond axis. Internal splined shaft outer splined shaft or hollow shaft. The signal of encoder inside of motor's junction box uses PCB board, also can choose aerial socket. The motor installiy can choose flange or baseplate.

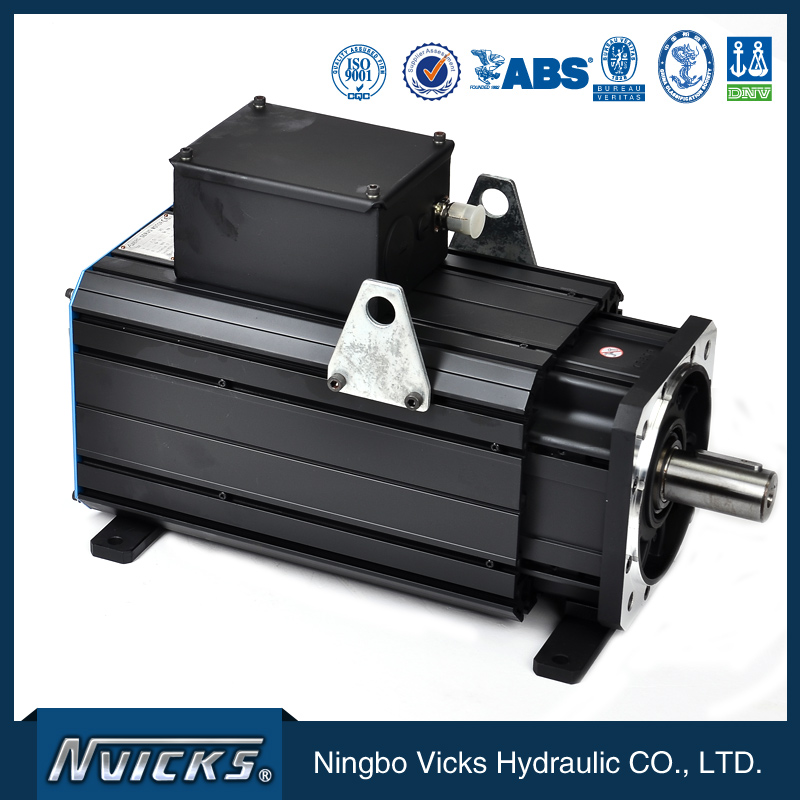

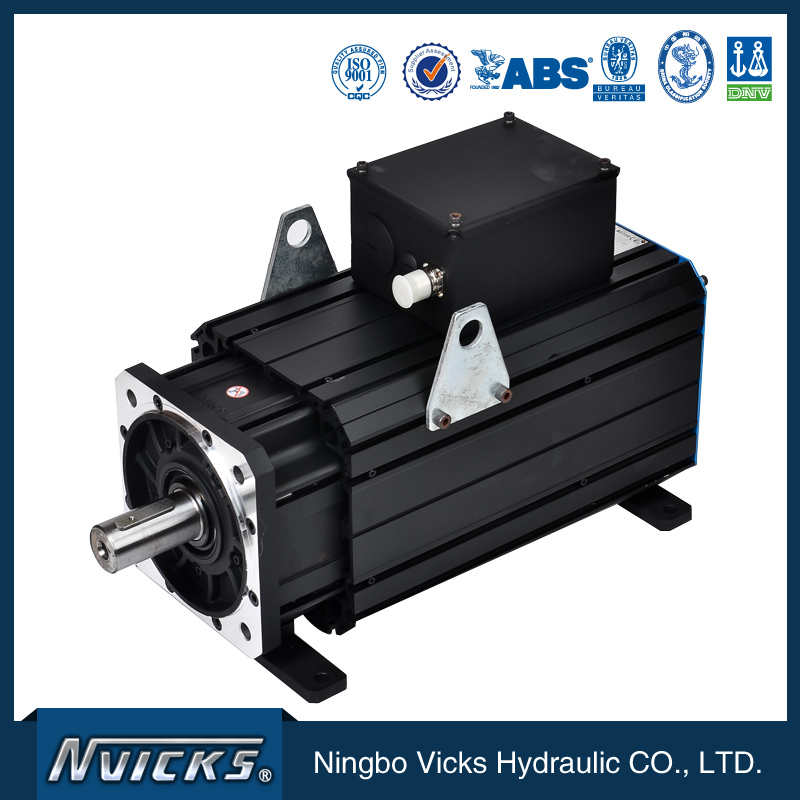

Product detail pictures:
