T6, T7 Series-pin Vane Pump Cartridge
High pressure and high performance dowel pin type vane pumps widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-machinery.
Features
1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime
2. This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and worked at high temperature.
3. As the vane pump adopts bilabial vane, it has high oil pollution resistance and wide speed scope.

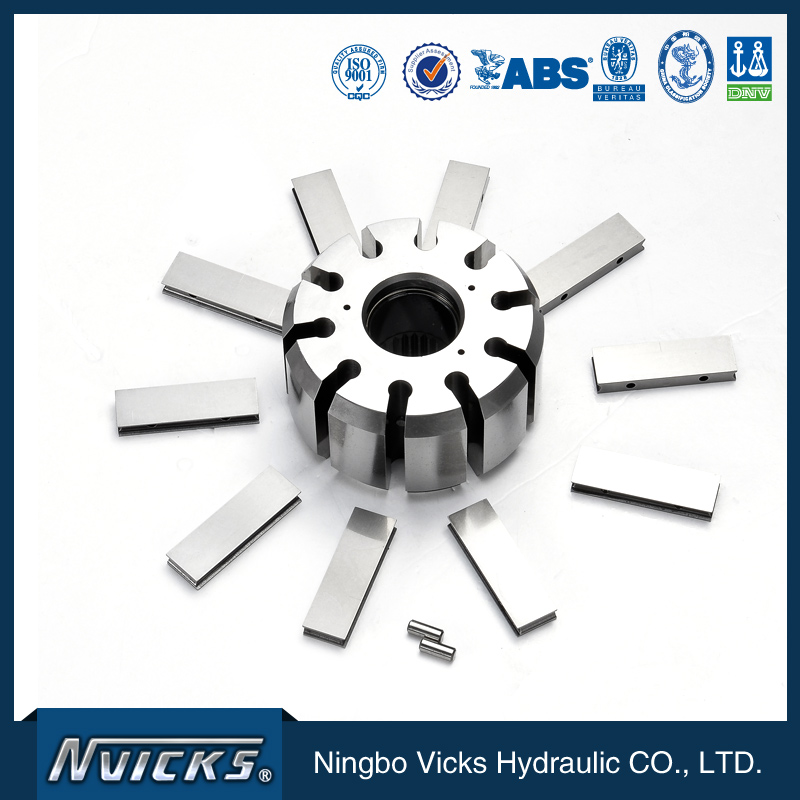

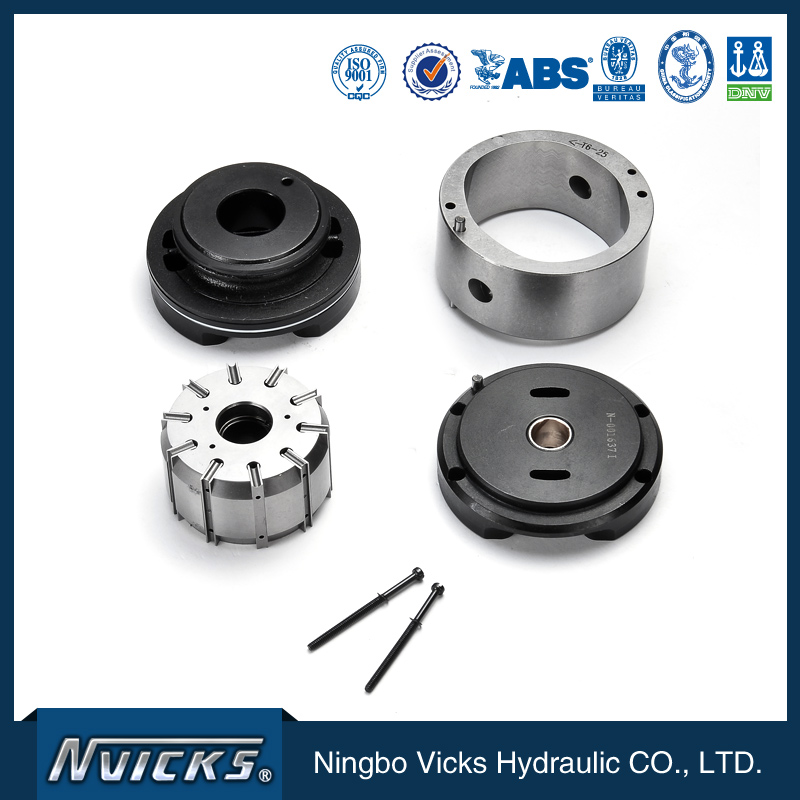

T6﹑T7 Cartridge Kit Vicks Hydraulic Vane Cartridge
|
NO. |
Part |
Qty |
NO. |
Part |
Qty |
NO. |
Part |
Qty |
|
1 |
Slotted Pan Head Screw |
2 |
6 |
Kit Vane |
10 or 12 |
11 |
Cam Rubf |
1 |
|
2 |
Internal Tooth Seal Kit |
2 |
7 |
Rotor |
1 |
12 |
Outlet Support Plate |
1 |
|
3 |
Ball Bearing |
1 |
8 |
Pins |
10 or 12 |
13 |
Retainer |
1 |
|
4 |
Inlet Support Plate |
1 |
9 |
Seal Bush |
1 |
14 |
Rectangle Seal Kit |
1 |
|
5 |
Pin |
3 |
10 |
Roundwire Snap Rings for |
1 |
15 |
Rectangle Seal Kit |
1 |
Model Designation
| T6DC | -045 | R | 1 | |
| Cartridge name | Series | Flow code | Rotation | Sealing Level |
| Single pump kit Front kit double or treble pump Middle kit of treble pump Rear kit of doublle or treble pump |
T7B(S)、T7BB(S)、T67CB、T67DB、T67EB、T67DBB、T67DCB、T67DDBS、T67EDB | B02、B03、B04、B05、B06、B07、B08、B10、B12、B15 | (Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise |
1-S1, NBR Nitrile rubber 5-S5, Fluororubber |
| T7D(S)、T7DB(S)、T7ED(S)、T67DC、T67ED | B14、B17、B20、B22、B24、B28、B31、B35、B38、B42 | |||
| T7E(S)、T7EE(S)、T7ED(S) | 042、045、050、052、054、057、062、066、072、085 | |||
| T6C、T6CC、T67CB、T6DC、T6EC、T6DCC、T67DCB、T6DDCCS、T6EDC(S) | 003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、025/B25、028/B28、031/B31 | |||
| T6D、T6DC、T67DB、T6ED、T6DCC、T67DBB、T67DCB、T6DDCS、T67DDBS、T6EDC(S)、T67EDB | 014/B14、017/B17、020/B20、024/B24、028/B28、031/B31、035/B35、038/B38、042/B42、045/B45、050/B50、061 | |||
| T6E、T6EC、T67EB、T6ED、T6EDC(S)、T67EDB |
042、045、050、052、057、062、066、072、085 |

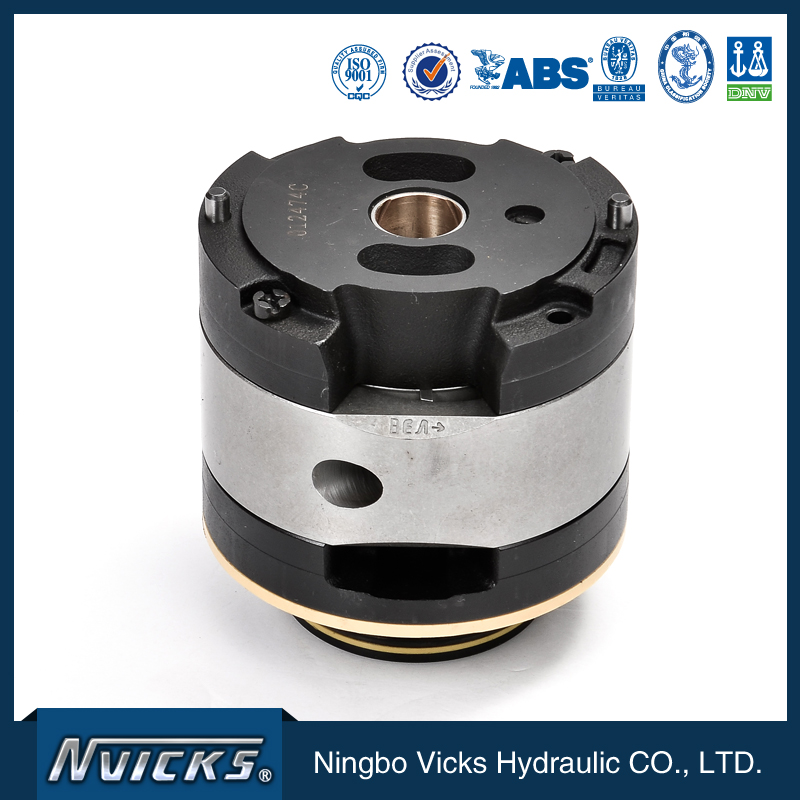

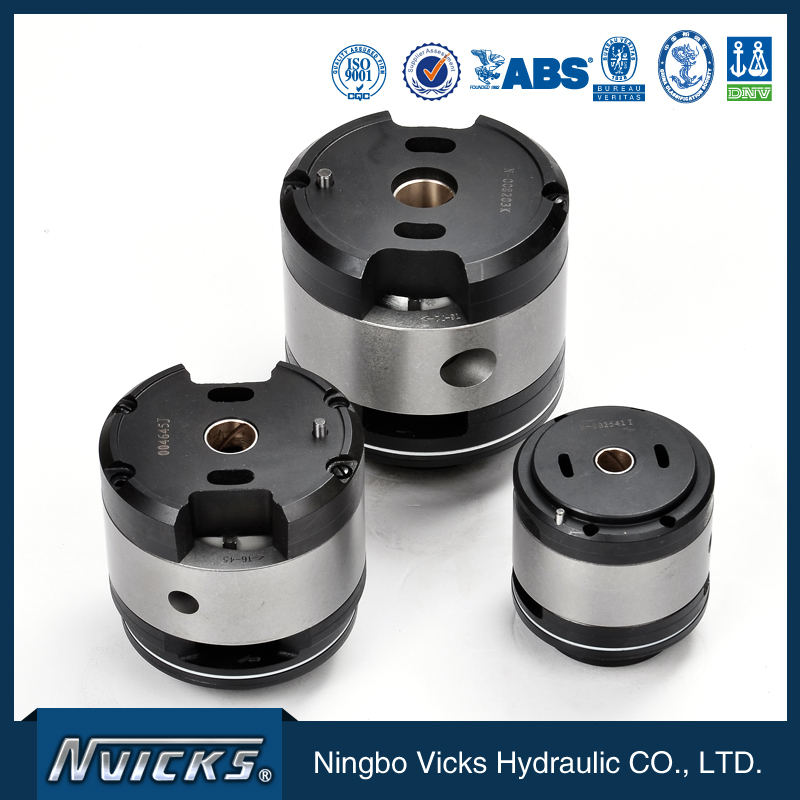

Product detail pictures:
