Cheapest Price V Series Single Pump to Canada Importers Detail:
High Performance Intra vane Pumps for plastic injection machinery, Tool machinery, Die casting machinery and Metallurgy equipment.
Features
1.Intra vane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Various displacement and shaft with 4 different outlet opposite position
4.The cartridge is independent of the drive shaft, allowing for easy servicing without remove the pump from its mounting.
Model Designation
| (F3-) | 25V | 19 | A | -1 | A | 22 | R |
| Note | Series | Displacement | Port connection |
Shaft type | Outlet Position | Design number |
Rotation |
| No-marking: Petroleum series oil emulsification fluid water glycol-fluid F3: phosphate ester fluid |
20V | 2、3、4、5、6、7、8、 9、10、11、12、14 |
A-SAE A-SAE 4-bolt flange |
1-Str key 151-Spline |
(Views from cover end of pump) A-Opposite inlet B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet |
22 | (Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise |
| 25V | 10、12、14、15、17、 19、21、25 |
1-Str key 86-HD Str key 11-Spline |
|||||
| 35V | 21、25、30、32、35、 38、45 |
||||||
| 45V | 42、45、50、57、60、 66、75 |
Technical Data
| Series | Flow code (Usgpm) |
Geometric displace-ment mL/r (in3/r) | With antiwear hydraulic oil or phosphate ester fluid | With water glycol fluid | With water-oil emulsions | Min. speed r/min | |||
| Max. operating pressure Mpa | Max. Speed r/min |
Max. operating pressure Mpa | Max. Speed r/min |
Max. operating pressure Mpa | Max. Speed r/min |
||||
| 20V | 2 | 7.5(0.46) | 13.8 | 1800 | 13.8 | 1500 | 6.9 | 1200 | 600 |
| 3 | 10(0.61) | ||||||||
| 4 | 13(0.79) | 20.7 | 15.9 | ||||||
| 5 | 16.5(1.01) | ||||||||
| 6 | 19(1.16) | ||||||||
| 7 | 23(1.40) | ||||||||
| 8 | 27(1.67) | ||||||||
| 9 | 30(1.85) | ||||||||
| 10 | 32(1.95) | ||||||||
| 11 | 36(2.20) | ||||||||
| 12 | 40(2.44) | 15.9 | 13.8 | ||||||
| 14 | 45(2.78) | 13.8 | |||||||
| 25V | 10 | 32.5(1.98) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 12 | 39(2.38) | ||||||||
| 14 | 45(2.78) | ||||||||
| 15 | 47(2.89) | ||||||||
| 17 | 55(3.36) | ||||||||
| 19 | 60(3.66) | ||||||||
| 21 | 67(4.13) | ||||||||
| 25 | 81(4.94) | ||||||||
| 35V | 21 | 67(4.13) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 25 | 81(4.94) | ||||||||
| 30 | 97(5.91) | ||||||||
| 32 | 101(6.16) | ||||||||
| 35 | 112(6.83) | ||||||||
| 38 | 121(7.37) | ||||||||
| 45 | 147(8.95) | 13.8 | 13.8 | ||||||
| 45V | 42 | 138(8.41) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 45 | 147(8.95) | ||||||||
| 50 | 162(9.85) | ||||||||
| 57 | 181(11.05) | ||||||||
| 60 | 193(11.75) | ||||||||
| 66 | 212(12.93) | ||||||||
| 75 | 237(14.46) | 13.8 | 13.8 | ||||||
Installation Dimensions
| Model | A | B | ∅C | D | E | ∅G | H | J | L | M | N | P | Q | R |
| 25V | 35.7 | 26.2 | 25.4 | 52.4 | 12.7 | 38.1 | 118 | 69.9 | 121 | 38.1 | 101.60/101.55 | 9.53 | 162.1 | 63.5 |
| 35V | 42.9 | 30.2 | 31.8 | 58.7 | 16 | 50.8 | 140 | 77.8 | 125.5 | 38.1 | 127.00/126.95 | 9.53 | 185 | 69.9 |
| 45V | 61.9 | 35.7 | 38.1 | 69.9 | 16 | 76.8 | 159 | 106.4 | 153 | 43 | 127.00/126.95 | 12.7 | 216 | 82.6 |
| Model | S | T | RU | ∅V | W | ∅X | ∅Fxfull thread depth, 4 holes | ∅Kxfull thread depth, 4 holes | ||||||
| 25V | 76.2 | 146 | 14 | 14.2 | 175 | 121 | 3/8-16UNC-2BX19.1 | 1/2-13UNC -2BX23.8 | ||||||
| 35V | 82.6 | 181 | 16 | 17.5 | 213 | 148 | 7/16-14UNC-2BX22.3 | 1/2-13UNC -2BX22.3 | ||||||
| 45V | 93.7 | 181 | 16 | 17.5 | 213 | 148 | 1/2-13UNC-2BX 23.8 | 5/8-11UNC -2BX 25.4 | ||||||

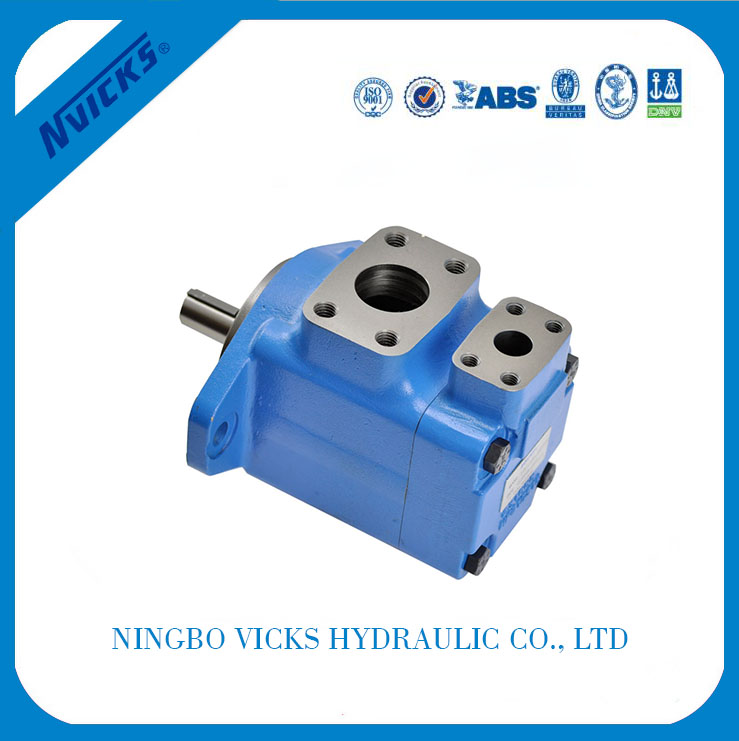

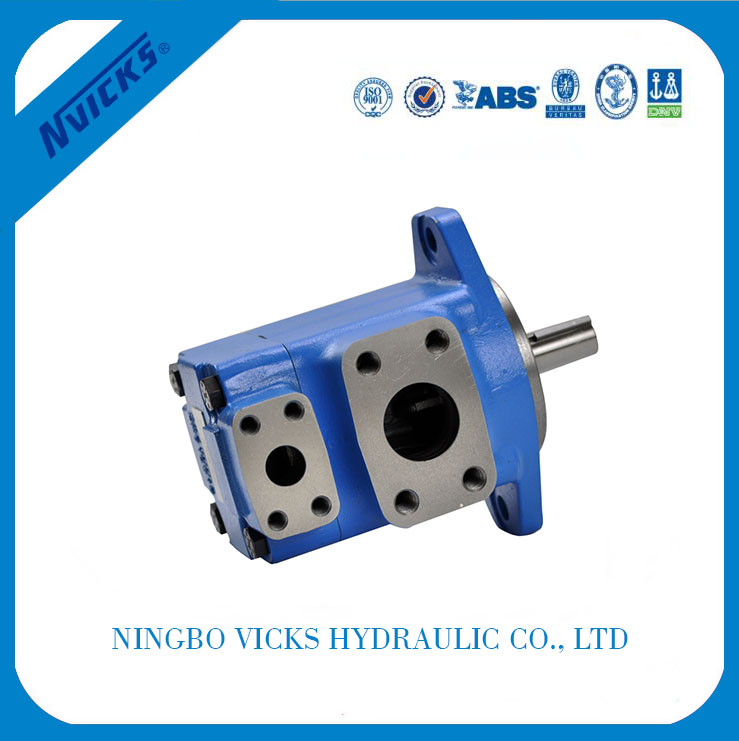

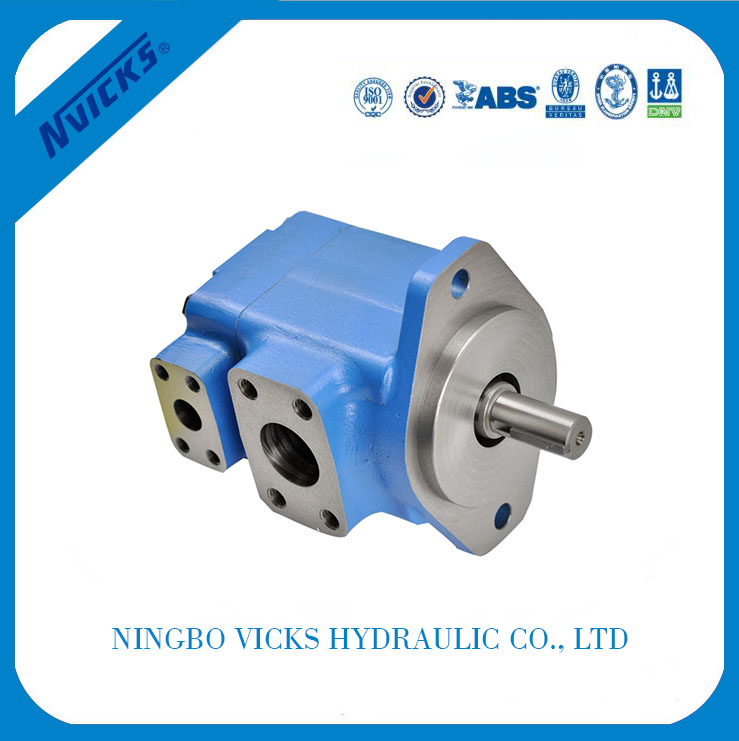

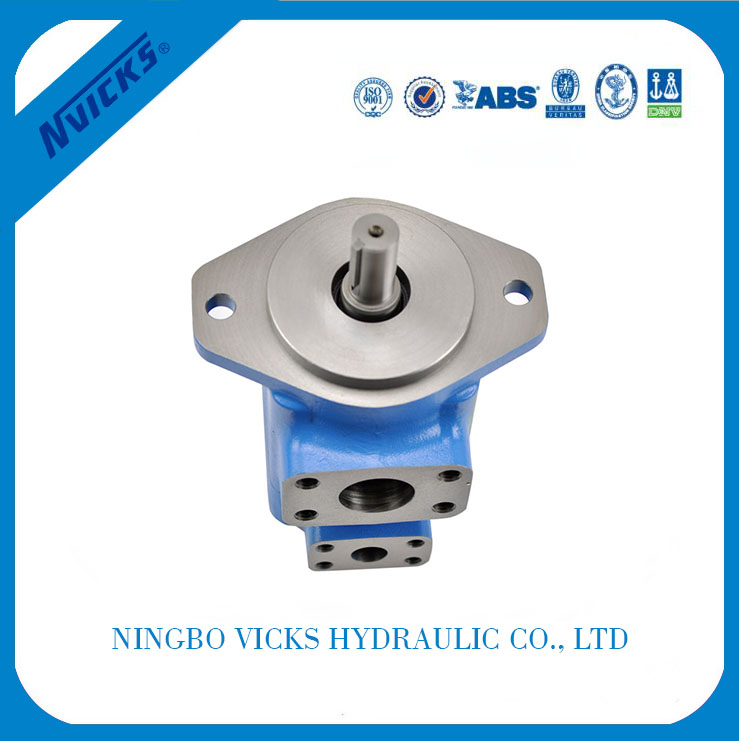

Product detail pictures:
