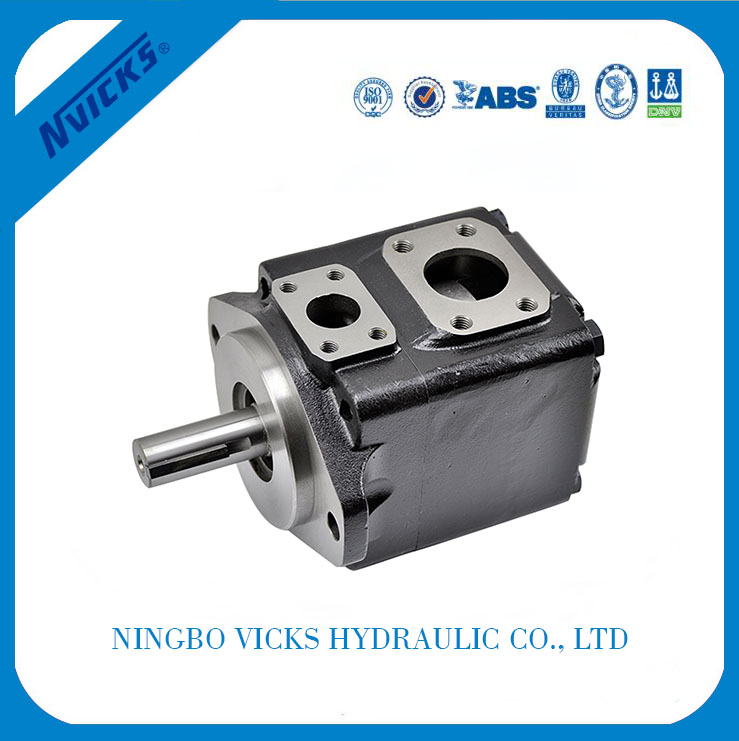

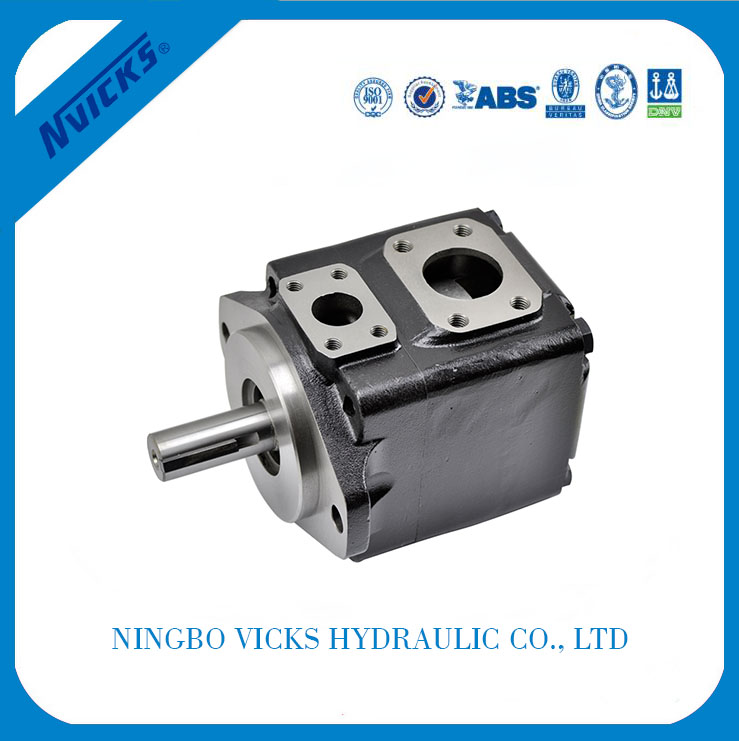

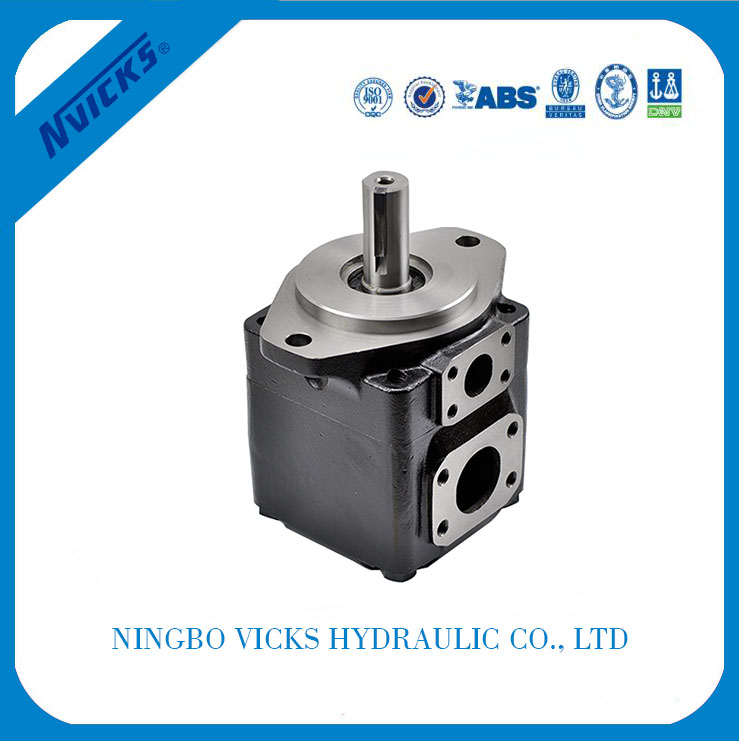

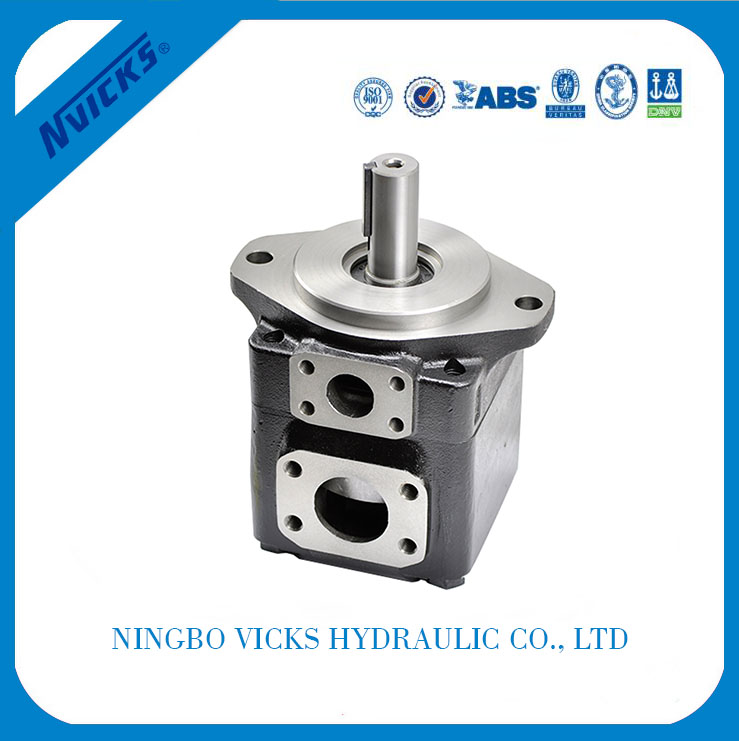

Best Price on T6 Series Single Pump Supply to Cyprus

Short Description:

High pressure and high performance dowel pin type vane pumps widely used for plastic machinery, casting machinery, metallurgy machinery, pressing machinery, refining machinery, construction machinery, marine-machinery. Features 1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime2.This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and worked at high temperature.3.As the vane pump adopts bilabial vane, it has hig...

Send email to us Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Sticking for the principle of "Super Quality, Satisfactory service" ,We have been striving for being a superb small business partner of you for High Quality Rotary Pump, Power Team Hydraulic Pump Oil, Hydraulic Pump Noise Suppressor, We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Best Price on T6 Series Single Pump Supply to Cyprus Detail:

Features

1.With dowel pin vane structure, it can work in high pressure, low noise and long lifetime
2.This vane pump can fit wide viscosity hydraulic medium, and be started at low temperature and worked at high temperature.
3.As the vane pump adopts bilabial vane, it has high oil pollution resistance and wide speed scope.

NO.	Part	Qty	NO.	Part	Qty	NO.	Part	Qty
1	Shaft	1	5	Cir Clip For Shaft	2	9	Cartridge Kit	1
2	Straight Key	1	6	Ball Bearing	1	10	Rear Cover	1
3	Front Cover	1	7	Cir Clip For Hole	1	11	Hexagon Head Bolt	4
4	Shaft Seal	1	8	Rectangle Seal Ring	1

T7B	S	-B10	-1	R	00	-A	1	01
Series	Type Code	Flow code	Shaft type	Rotation	Port positions	Design number	Sealing Level	Port dimensions
T7B	NO: ISO 3019 Installation Flange S: SAE J744 installation flange	B02、B03、B04、B05、 B06、B07、B08、B10、 B12、B15	See of shaft	(Views from shaft end of pump) R-right hand for clockwise L-left hand for counter-clockwise	(Views from shaft end of pump) 00-Opposite inlet port 01-Inline with inlet 02-90°CCW from inlet 03-90°CW from inlet	A	1-S1, NBR Nitrile rubber 5-S5, Fluororubber	See installation dimensions
T7D		B14、B17、B20、B22、 B24、B28、B31、B35、 B38、B42						NO
T7E		042、045、050、052、 054、057、062、066、 072、085
T6C	NO: industrial type M: truck type P: truck type double seal kits	003/B03、005/B05、006/B06、008/B08、010/B10、012/B12、014/B14、017/B17、020/B20、022/B22、025/B25、028/B28、031/B31
T6D		014/B14、017/B17、020/B20、024/B24、028/B28、031/B31、035/B35、038/B38、042/B42、045/B45、050/B50、061
T6E		042、045、050、052、 057、062、066、072、085

003/B03: In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate structure.

Series	Flow code (Usgpm)	Geometric displace-ment mL/r	Max. pressure Mpa						Max. speed r/min		Min. speed r/min
			Antiwear hydraulic oil		Genneral hydraulic oil or phosphate eater fluid		Water glycol fluid or water-oil emulsions		Genneral hydraulic oil or phosphate eater fluid or antiwear hydraulic oil	Water glycol fluid or phosphate eater fluid or water-oil emulsions
			Instant	Continuous	Instant	Continuous	Instant	Continuous
T7B(S)	B02	5.8	35	32	24	21	17.5	14	3600	1800	600
	B03	9.8
	B04	12.8
	B05	15.9
	B06	19.8
	B07	22.5
	B08	24.9
	B10	31.8
	B12	41.0	30	27.5					3000
	B15	50.0	28	24
T7D(S)	B14	44.0	30	25	24	21	17.5	14	3000	1800	600
	B17	55.0
	B20	66.0
	B22	70.3
	B24	81.1
	B28	90.0
	B31	99.2
	B35	113.4	28						2800
	B38	120.6
	B42	137.5	26	23					2500
T7E(S)	042	132.3	25	21	21	17.5	17.5	14	2200	1800	600
	045	142.4
	050	158.5
	052	164.8
	054	171.0
	57	183.3
	062	196.7
	066	213.3
	072	227.1
	085	268.7	9	7.5	7.5	7.5	7.5	7.5	2000

003/B03： In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate strucrure.
Technical Date
<

Series	Flow code (Usgpm)	Geometric displace-ment mL/r	Max. pressure Mpa						Max. speed r/min		Min. speed r/min
			Antiwear hydraulic oil		Genneral hydraulic oil or phosphate eater fluid		Water glycol fluid or water-oil emulsions		Genneral hydraulic oil or phosphate eater fluid or antiwear hydraulic oil	Water glycol fluid or phosphate eater fluid or water-oil emulsions
			Instant	Continuous	Instant	Continuous	Instant	Continuous
T6C	003	10.8	28	24	21	17.5	17.5	14	2800	1800	600
	005	17.2
	006	21.3
	008	26.4
	010	34.1
	012	37.1
	014	46.0
	017	58.3
	020	63.8
	022	70.3
	025	79.3							2500
	028	88.8	21	16		16
	031	100.0
T6D	014	47.6	25	21	21	17.5	17.5	14	2500	1800	600
	017	58.2
	020	66.0
	024	79.5
	028	89.7
	031	98.3
	035	111.0
	038	120.3
	042	136.0							2200
	045	145.7
	050	158.0	21	16		16
	061	190.5	12	8	8	8	7.5	7.5
T6E	042	132.3	25	21	21	17.5	17.5	14	2200	1800	600
	045	142.4
	050	158.5
	052	164.8
	057	179.8
	062	196.7
	066	213.3
	072	227.1
	085	269.0	12	8	12	8	7.5	7.5	2000

003/B03： In displacement code, 0 means single steering valve plate structure, B means the two steering valve plate strucrure.
Operation Performance

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)							Input Power (KW)
			P=0 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=28 Mpa	P=32 Mpa	P=0.7 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=28 Mpa	P=32 Mpa
			L/min	L/min	L/min	L/min	L/min	L/min	L/min	KW	KW	KW	KW	KW	KW	KW
T7B(S)-B02	5.8	1000	5.8	4.9	4.2	3.3	-	-	-	0.2	0.9	1.7	2.5	-	-	-
		1200	7.0	6.1	5.4	4.5	4.0	-	-	0.4	1.3	2.2	3.2	3.6	-	-
		1500	8.7	7.8	7.1	6.2	5.7	5.2	4.7	0.6	1.7	2.8	4.0	4.5	5.2	5.9
		1800	10.4	9.5	8.8	7.9	7.4	6.9	6.4	0.7	2.0	3.4	5.0	5.6	6.4	7.2
T7B(S)-B03	9.8	1000	9.8	8.9	8.2	7.3	6.8	6.3	5.8	0.2	1.3	2.6	3.9	4.5	5.2	6.0
		1200	11.8	10.9	10.2	9.3	8.8	8.3	7.8	0.4	1.8	3.3	4.9	5.5	6.4	7.3
		1500	14.7	13.8	13.1	12.2	11.7	11.2	10.7	0.7	2.4	4.2	6.1	6.9	8.0	9.1
		1800	17.6	16.7	16.0	15.1	14.6	14.1	13.6	0.8	2.8	5.1	7.5	8.5	9.7	11.0
T7B(S)-B04	12.8	1000	12.8	11.9	11.2	10.3	9.8	9.3	8.8	0.2	1.7	3.3	5.0	5.7	6.6	7.6
		1200	15.4	14.5	13.8	12.9	12.4	11.9	11.4	0.5	2.2	4.2	6.1	6.9	8.1	9.2
		1500	19.2	18.3	17.6	16.7	16.2	15.7	15.2	0.7	2.9	5.3	7.7	8.7	10.1	11.5
		1800	23.0	22.1	21.4	20.5	20.0	19.5	19.0	0.9	3.4	6.4	9.4	10.6	12.3	13.9
T7B(S)-B05	15.9	1000	15.9	15.0	14.3	13.4	12.9	12.4	11.9	0.3	2.1	4.1	6.0	6.9	8.1	9.2
		1200	19.1	18.2	17.5	16.6	16.1	15.6	15.1	0.5	2.7	5.0	7.4	8.4	9.8	11.2
		1500	23.9	23.0	22.3	21.4	20.9	20.4	19.9	0.8	3.4	6.4	9.3	10.6	12.3	14.0
		1800	28.6	27.7	27.0	26.1	25.6	25.1	24.6	0.9	4.1	7.7	11.3	12.8	14.9	16.9
T7B(S)-B06	19.8	1000	19.8	18.9	18.2	17.3	16.8	16.3	15.8	0.3	2.5	5.0	7.4	8.5	9.9	11.3
		1200	23.8	22.9	22.2	21.3	20.8	20.3	19.8	0.6	3.2	6.1	9.1	10.3	12.0	13.7
		1500	29.7	28.8	28.1	27.2	26.7	26.2	25.7	0.8	4.1	7.7	11.4	12.9	15.0	17.1
		1800	35.6	34.7	34.0	33.1	32.6	32.1	31.6	1.0	4.9	9.3	13.8	15.7	19.1	20.6
T7B(S)-B07	22.5	1000	22.5	21.6	20.9	20.0	19.5	19.0	18.5	0.4	2.8	5.6	8.3	9.6	11.2	12.8
		1200	27.0	26.1	25.4	24.5	24.0	23.5	23.0	0.6	3.6	6.9	10.2	11.6	13.5	15.4
		1500	33.8	32.9	32.2	31.3	30.8	30.3	29.8	0.9	4.6	8.7	12.8	14.6	16.9	19.3
		1800	40.5	39.6	38.9	38.0	37.5	37.0	36.5	1.1	5.5	10.5	15.5	17.6	20.4	23.2
T7B(S)-B08	24.9	1000	24.9	24.0	23.3	22.4	21.9	21.4	20.9	0.4	3.1	6.2	9.2	10.5	12.3	14.0
		1200	29.9	29.0	28.3	27.4	26.9	26.4	25.9	0.6	3.9	7.6	11.2	12.8	14.8	16.9
		1500	37.4	36.5	35.8	34.9	34.4	33.9	33.4	0.9	5.0	9.5	14.1	16.0	18.6	21.2
		1800	44.8	43.9	43.2	42.3	41.8	41.3	40.8	1.1	6.0	11.5	17.0	19.3	22.4	25.5
T7B(S)-B10	31.8	1000	31.8	30.9	30.2	29.3	28.8	28.3	27.8	0.5	3.9	7.8	11.6	13.3	15.5	17.7
		1200	38.2	37.3	36.6	35.7	35.2	34.7	34.2	0.7	4.9	9.5	14.1	16.1	18.7	21.4
		1500	47.7	46.8	46.1	45.2	44.7	44.2	43.7	1.1	6.2	11.9	17.7	20.1	23.4	26.7
		1800	57.2	56.3	55.6	54.7	54.2	53.7	53.2	1.3	7.4	14.4	21.3	24.3	28.2	32.1
T7B(S)-B12	41.0	1000	41.0	40.1	39.4	38.5	38.0	37.5	-	0.6	5.0	9.9	14.8	17.0	19.8	-
		1200	49.2	48.3	47.6	46.7	46.2	45.7	-	0.9	6.2	12.1	18.0	20.5	23.9	-
		1500	61.5	60.6	59.9	59.0	58.5	58.0	-	1.2	7.8	15.2	22.5	25.7	29.9	-
		1800	73.8	72.9	72.2	71.3	70.8	70.3	-	1.5	9.4	18.2	27.1	30.9	35.9	-
T7B(S)-B15	50.0	1000	50.0	49.1	48.4	47.5	47.0	46.5	-	0.7	6.0	12.0	18.0	20.6	24.0	-
		1200	60.0	59.1	58.4	57.5	57.0	56.5	-	1.0	7.4	14.6	21.7	24.8	28.9	-
		1500	75.0	74.1	73.4	72.5	72.0	71.5	-	1.4	9.4	18.3	27.2	31.1	36.2	-
		1800	90.0	89.1	88.4	87.5	87.0	86.5	-	1.7	11.3	22.0	32.8	37.4	43.5	-

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)
			P=0 Mpa	P=14 Mpa	P=30 Mpa
			L/min	L/min	L/min
T7D(S)-B14	44.0	1000	44.0	37.4	29.9
		1200	52.8	46.2	38.7
		1500	66.0	59.4	51.9
		1800	79.2	72.6	65.1
T7D(S)-B17	55.0	1000	55.0	48.4	40.9
		1200	66.0	59.4	51.9
		1500	82.5	75.9	68.4
		1800	99.0	92.4	84.9
T7D(S)-B20	66.0	1000	66.0	59.4	51.9
		1200	79.2	72.6	65.1
		1500	99.0	92.4	84.9
		1800	118.8	112.2	104.7
T7D(S)-B22	70.3	1000	70.3	63.7	56.2
		1200	84.4	77.8	70.3
		1500	105.5	98.8	91.4
		1800	126.5	119.9	112.4
T7D(S)-B24	81.1	1000	81.1	74.5	67.0
		1200	97.3	90.7	83.2
		1500	121.7	115.1	107.6
		1800	146.0	139.4	131.9
T7D(S)-B28	90.0	1000	90.0	83.4	75.9
		1200	108.0	101.4	93.9
		1500	135.0	128.4	120.9
		1800	162.0	155.4	147.9
T7D(S)-B31	99.2	1000	99.2	92.6	85.1
		1200	119.8	113.2	105.7
		1500	148.8	142.2	134.7
		1800	178.6	172.0	164.5
T7D(S)-B35	113.4	1000	113.4	106.8	-
		1200	136.1	129.5	-
		1500	170.1	163.5	-
		1800	204.1	197.5	-
T7D(S)-B38	120.6	1000	120.6	114.0	-
		1200	144.7	138.1	-
		1500	180.9	174.3	-
		1800	217.1	210.5	-
T7D(S)-B42	137.5	1000	137.5	130.9	-
		1200	165.0	158.4	-
		1500	206.3	199.7	-
		1800	247.5	240.9	-

Series	Input Power (KW)
	P=0.7 Mpa	P=14 Mpa	P=30 Mpa
	KW	KW	KW
T7D(S)-B14	1.5	16.6	34.2
T7D(S)-B17	1.7	20.4	42.4
T7D(S)-B20	1.9	24.3	50.7
T7D(S)-B22	2.0	25.8	53.9
T7D(S)-B24	2.2	29.5	62.0
T7D(S)-B28	2.3	32.7	68.7
T7D(S)-B31	2.5	35.9	75.6
T7D(S)-B35	2.7	40.8	-
T7D(S)-B38	2.9	43.4	-
T7D(S)-B42	3.2	49.3	-

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)
			P=0 Mpa	P=14 Mpa	P=24 Mpa
			L/min	L/min	L/min
T7E(S)-042	132.3	1000	132.3	122.3	115.2
		1200	158.8	150.8	143.7
		1500	198.5	188.5	181.4
		1800	238.1	228.1	221.0
T7E(S)-045	142.4	1000	142.4	132.4	125.3
		1200	170.9	160.9	153.8
		1500	213.6	203.6	196.5
		1800	256.3	246.3	239.2
T7E(S)-050	158.5	1000	158.5	158.5	141.4
		1200	190.2	180.2	173.1
		1500	237.7	227.7	220.6
		1800	285.3	275.3	268.2
T7E(S)-052	164.8	1000	164.8	154.8	147.7
		1200	197.8	187.8	180.7
		1500	247.2	237.2	230.1
		1800	296.6	286.6	279.5
T7E(S)-054	171.0	1000	171.0	161.0	153.9
		1200	205.2	195.2	188.1
		1500	256.5	246.5	239.4
		1800	307.8	297.8	290.7
T7E(S)-057	183.3	1000	183.3	173.3	166.2
		1200	220.0	210.0	202.9
		1500	275.0	265.0	257.9
		1800	330.0	320.0	312.9
T7E(S)-062	196.7	1000	196.7	186.7	179.6
		1200	236.0	226.0	218.9
		1500	295.0	285.0	277.9
		1800	354.1	344.1	337.0
T7E(S)-066	213.3	1000	213.3	203.3	196.2
		1200	256.0	246.0	238.9
		1500	319.9	309.0	302.8
		1800	354.1	344.1	337.0
T7E(S)-072	227.1	1000	227.1	217.1	210.0
		1200	272.5	262.5	255.4
		1500	340.6	330.6	323.5
		1800	408.8	398.8	391.7
T7E(S)-085*	268.7	1000	268.7	-	-
		1200	322.4	-	-
		1500	403.0	-	-
		1800	483.7	-	-

*85: The max rotation speed is 2000r/min, and the max intermittent pressure is 21MPa

Series	Input Power (KW)
	P=0 Mpa	P=14 Mpa	P=24 Mpa
	KW	KW	KW
T7E(S)-042	5.2	49.4	82.6
T7E(S)-045	5.4	52.9	88.7
T7E(S)-050	5.7	58.5	50.7
T7E(S)-052	5.8	60.8	102.1
T7E(S)-054	5.9	63	105.8
T7E(S)-057	6.1	67.3	113.2
T7E(S)-062	6.4	71.9	121.3
T7E(S)-066	6.7	77.7	131.2
T7E(S)-072	6.9	82.6	139.5
T7E(S)-085	9.1	-	-

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)						Input Power (KW)
			P=0 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=28 Mpa	P=0.7 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=28 Mpa
			L/min	L/min	L/min	L/min	L/min	L/min	KW	KW	KW	KW	KW	KW
T6C-003 T6C-B03	10.8	1000	10.8	8.3	5.8	-	-	-	0.9	2.2	3.7	-	-	-
		1200	13.0	10.5	8.0	-	-	-	1.1	2.6	4.4	-	-	-
		1500	16.2	13.7	11.2	8.7	8.2	-	1.3	3.3	5.4	7.6	8.5	-
		1800	19.4	16.9	14.4	11.9	11.4	10.3	1.7	4.0	6.4	8.9	10.0	11.5
T6C-005 T6C-B05	17.2	1000	17.2	14.7	12.2	9.7	9.2	-	1.0	3.0	5.2	7.4	8.4	-
		1200	20.6	18.1	15.6	13.1	12.6	11.5	1.1	3.5	6.2	8.8	10.0	11.5
		1500	25.8	23.3	20.8	18.3	17.8	16.7	1.4	4.4	7.7	10.9	12.3	14.1
		1800	31.0	28.5	26.0	23.5	23.0	21.9	1.9	5.3	9.1	13.0	14.6	16.8
T6C-006 T6C-B06	21.3	1000	21.3	18.8	16.3	13.8	13.3	12.2	1.0	3.4	6.1	8.9	10.0	11.5
		1200	25.6	23.1	20.6	18.1	17.6	16.5	1.2	4.1	7.3	10.5	11.9	13.8
		1500	32.0	29.5	27.0	24.5	24.0	22.9	1.5	5.1	9.1	13.1	14.8	17.0
		1800	38.3	35.8	33.3	30.8	30.3	29.2	1.9	6.2	10.8	15.6	17.6	20.3
T6C-008 T6C-B08	26.4	1000	26.4	23.9	21.4	18.9	18.4	17.3	1.1	4.0	7.3	10.6	12.0	13.9
		1200	31.7	29.2	26.7	24.2	23.7	22.6	1.3	4.8	8.7	12.7	14.4	16.6
		1500	39.6	37.1	34.6	32.1	31.6	30.5	1.6	6.0	10.9	15.8	17.8	20.6
		1800	47.5	45.0	42.5	40.0	39.5	38.4	2.1	7.2	13.0	18.8	21.3	24.6
T6C-010 T6C-B10	34.1	1000	34.1	31.6	29.1	26.6	26.1	25.0	1.2	4.9	9.1	13.3	15.1	17.5
		1200	40.9	38.4	35.9	33.4	32.9	31.8	1.4	5.9	10.9	15.9	18.1	20.9
		1500	51.2	48.7	46.2	43.7	43.2	42.1	1.7	7.3	13.6	19.8	22.5	26.0
		1800	61.4	58.9	56.4	53.9	53.4	52.3	2.2	8.9	16.2	23.6	26.8	31.0
T6C-012 T6C-B12	37.1	1000	37.1	34.6	32.1	29.6	29.1	28.0	1.2	5.3	9.8	14.4	16.3	18.9
		1200	44.5	42.0	39.5	37.0	36.5	35.4	1.4	6.3	11.7	17.2	19.5	22.6
		1500	55.7	53.2	50.7	48.2	47.7	46.6	1.7	7.9	14.6	21.4	24.3	28.1
		1800	66.8	64.3	61.8	59.3	58.8	57.7	2.3	9.5	17.5	25.5	29.0	33.6
T6C-014 T6C-B14	46.0	1000	46.0	43.5	41.0	38.5	38.0	36.9	1.3	6.3	11.9	17.5	19.9	23.1
		1200	55.2	52.7	50.2	47.7	47.2	46.1	1.5	7.6	14.2	20.9	23.8	27.6
		1500	69.0	66.5	64.0	61.5	61.0	59.9	1.9	9.4	17.7	26.1	29.6	34.3
		1800	82.8	80.3	77.8	75.3	74.8	73.7	2.5	11.4	21.2	31.1	35.4	41.0
T6C-017 T6C-B17	58.3	1000	58.3	55.8	53.3	50.8	50.3	49.2	1.5	7.8	14.8	21.8	24.8	28.8
		1200	70.0	67.5	65.0	62.5	62.0	60.9	1.7	9.3	17.7	26.1	29.7	34.5
		1500	87.5	85.0	82.5	80.0	79.5	78.4	2.1	11.6	22.0	32.5	37.0	42.9
		1800	104.9	102.4	99.9	97.4	96.9	95.8	2.7	13.9	26.4	38.9	44.2	51.4
T6C-020 T6C-B20	63.8	1000	63.8	61.3	58.8	56.3	55.8	54.7	1.5	8.4	16.0	23.7	27.0	31.4
		1200	76.6	74.1	71.6	69.1	68.6	67.5	1.8	10.0	19.2	28.4	32.3	37.6
		1500	95.7	93.2	90.7	88.2	87.7	86.6	2.2	12.5	24.0	35.4	40.3	46.8
		1800	114.8	112.3	109.8	107.3	106.8	105.7	2.8	15.1	28.7	42.3	48.2	56.0
T6C-022 T6C-B22	70.3	1000	70.3	67.8	65.3	62.8	62.3	61.2	1.6	9.2	17.6	26.0	29.6	34.4
		1200	84.4	81.9	79.4	76.9	76.4	75.3	1.9	11.0	21.0	31.1	35.5	41.2
		1500	105.5	103.0	100.5	98.0	97.5	96.4	2.3	13.7	26.2	38.8	44.2	51.3
		1800	126.5	124.0	121.5	119.0	118.5	117.4	3.0	16.5	31.4	46.4	52.9	61.5
T6C-025 T6C-B25	79.3	1000	79.3	76.8	74.3	71.8	71.3	70.2	1.7	10.2	19.7	29.2	33.2	38.6
		1200	95.2	92.7	90.2	87.7	87.2	86.1	2.0	12.2	23.6	34.9	39.8	46.3
		1500	119.0	116.5	114.0	111.5	111.0	109.9	2.5	15.2	29.4	43.5	49.6	57.6
		1800	142.7	140.2	137.7	135.2	134.7	133.6	3.2	18.4	35.2	52.1	59.3	69.0
T6C-028* T6C-B28	88.8	1000	88.8	86.3	83.8	81.3	-	-	1.8	11.3	21.9	32.5	-	-
		1200	106.6	104.1	101.6	99.1	-	-	2.1	13.5	26.2	38.9	-	-
		1500	133.2	130.7	128.2	125.7	-	-	2.7	16.9	32.7	48.5	-	-
		1800	159.8	157.3	154.8	152.3	-	-	3.4	20.3	39.2	58.1	-	-
T6C-031* T6C-B31	100.0	1000	100.0	97.5	95.0	92.5	-	-	2.0	12.6	24.5	36.4	-	-
		1200	120.0	117.5	115.0	112.5	-	-	2.3	15.1	29.4	43.6	-	-
		1500	150.0	147.5	145.0	142.5	-	-	2.9	18.9	39.6	54.4	-	-
		1800	180.0	177.5	175.0	172.5	-	-	3.6	22.7	43.9	65.1	-	-

*28、31: The max intermittent pressure is 21Mpa

—– As the inner leakage is over 50% of theoretical value, so it is not used

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)					Input Power (KW)
			P=0 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=0.7 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa
			L/min	L/min	L/min	L/min	L/min	KW	KW	KW	KW	KW
T6D-014 T6D-B14	47.6	1000	47.6	43.6	38.6	34.6	32.6	1.6	6.8	12.6	18.3	20.7
		1200	57.1	53.1	48.1	44.1	42.1	1.8	8.0	14.9	21.8	24.8
		1500	71.4	67.4	62.4	58.4	56.4	2.3	10.0	18.5	27.0	30.7
		1800	85.7	81.7	76.7	72.7	70.7	2.9	12.1	22.3	32.5	36.9
T6D-017 T6D-B17	58.2	1000	58.2	54.2	49.2	45.2	43.2	1.7	8.0	15.0	22.0	25.0
		1200	69.8	65.8	60.8	56.8	54.8	1.9	9.5	17.9	26.3	29.9
		1500	87.3	83.3	78.3	74.3	72.3	2.5	11.8	22.2	32.6	37.0
		1800	104.8	100.8	95.8	91.8	89.8	3.1	14.4	26.8	24.7	28.1
T6D-020 T6D-B20	66.0	1000	66.0	62.0	57.0	53.0	51.0	1.8	8.9	16.8	24.7	28.1
		1200	79.2	75.2	70.2	66.2	64.2	2.1	10.6	20.1	29.6	33.6
		1500	99.0	95.0	90.0	86.0	84.0	2.7	13.2	24.9	36.7	41.7
		1800	118.8	114.8	109.8	105.8	103.8	3.3	16.0	30.1	44.1	50.1
T6D-024 T6D-B24	79.5	1000	79.5	75.5	70.5	66.5	64.5	1.9	10.5	20.0	29.4	33.5
		1200	95.4	91.4	86.4	82.4	80.4	2.2	12.5	23.9	35.2	40.1
		1500	119.3	115.3	110.3	106.3	104.3	2.9	15.6	29.7	43.7	49.8
		1800	143.1	139.1	134.1	130.1	128.1	3.6	18.8	35.7	52.6	59.9
T6D-028 T6D-B28	89.7	1000	89.7	85.7	80.7	76.7	74.7	2.0	11.7	22.3	33.0	37.5
		1200	107.6	103.6	98.6	94.6	92.6	2.4	13.9	26.7	39.5	45.0
		1500	134.6	130.6	125.6	121.6	119.6	3.1	17.4	33.2	49.1	55.9
		1800	161.5	157.5	152.5	148.5	146.5	3.8	21.0	40.0	59.0	67.2
T6D-031 T6D-B31	98.3	1000	98.3	94.3	89.3	85.3	83.3	2.1	12.7	24.3	36.0	41.0
		1200	118.0	114.0	109.0	105.0	103.0	2.5	15.1	29.1	43.1	49.1
		1500	147.5	143.5	138.5	134.5	132.5	3.2	18.9	36.2	53.6	61.1
		1800	176.9	172.9	167.9	163.9	161.9	4.0	22.8	43.6	64.5	73.4
T6D-035 T6D-B35	111.0	1000	111.0	107.0	102.0	98.0	96.0	2.3	14.2	27.3	40.5	46.1
		1200	133.2	129.2	124.2	120.2	118.2	2.7	16.9	32.7	48.5	55.2
		1500	166.5	162.5	157.5	153.5	151.5	3.4	21.1	40.7	60.3	68.7
		1800	199.8	195.8	190.8	186.8	184.8	4.2	25.4	49.0	72.5	82.5
T6D-038 T6D-B38	120.3	1000	120.3	116.3	111.3	107.3	105.3	2.4	15.2	29.5	43.7	49.8
		1200	144.4	140.4	135.4	131.4	129.4	2.8	18.2	35.3	52.4	59.7
		1500	180.5	176.5	171.5	167.5	165.5	3.6	22.7	43.9	65.2	74.3
		1800	216.5	212.5	207.5	203.5	201.5	4.4	27.4	52.9	78.3	89.2
T6D-042 T6D-B42	136.0	1000	136.0	132.0	127.0	123.0	121.0	2.6	17.1	33.1	49.2	56.1
		1200	163.2	159.2	154.2	150.2	148.2	3.0	20.4	39.7	59.0	67.2
		1500	204.0	200.0	195.0	191.0	189.0	3.9	25.5	49.4	73.4	83.7
		1800	244.8	240.8	235.8	231.8	229.8	4.8	30.7	59.5	88.2	100.5
T6D-045 T6D-B45	145.7	1000	145.7	141.7	136.7	132.7	130.7	2.7	18.2	35.4	52.6	59.9
		1200	174.8	170.8	165.8	161.8	159.8	3.2	21.7	42.4	63.0	71.9
		1500	218.6	214.6	209.6	205.6	203.6	4.0	27.2	52.8	78.5	89.5
		1800	262.3	258.3	253.3	249.3	247.3	5.0	32.7	63.5	94.3	107.5
T6D-050* T6D-B50	158.0	1000	158.0	154.0	149.0	145.0	-	2.8	19.6	38.3	56.9	-
		1200	189.6	185.6	180.6	176.6	-	3.3	23.5	45.8	68.2	-
		1500	237.0	233.0	228.0	224.0	-	4..3	29.3	57.1	85.0	-
		1800	284.4	280.4	275.4	271.4	-	5.2	35.3	68.7	102.1	-

*50 The max intermittent pressure is 21MPa

Series	Geological Displacement mL/rev	Rotation speed r/min	Flow (L/min)					Input Power (KW)
			P=0 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24 Mpa	P=0.7 Mpa	P=7 Mpa	P=14 Mpa	P=21 Mpa	P=24.5 Mpa
			L/min	L/min	L/min	L/min	L/min	KW	KW	KW	KW	KW
T6E-042	132.3	1000	132.3	127.3	122.3	117.3	115.3	3.3	17.4	33.0	48.5	55.2
		1200	158.8	153.8	148.8	143.8	141.8	4.0	20.8	39.5	58.3	66.3
		1500	198.5	193.5	188.5	183.5	181.5	5.2	26.2	49.4	72.7	82.7
		1800	238.1	233.1	228.1	223.1	221.1	6.4	31.5	59.4	87.3	99.4
T6E-045	142.4	1000	142.4	137.4	132.4	127.4	125.4	3.5	18.6	35.3	52.1	59.3
		1200	170.9	165.9	160.9	155.9	153.9	4.1	22.2	42.4	62.5	71.2
		1500	213.6	208.6	203.6	198.6	196.6	5.4	27.9	52.9	78.0	88.8
		1800	256.3	251.3	246.3	241.3	239.3	6.6	33.6	63.7	93.7	106.6
T6E-050	158.5	1000	158.5	153.5	148.5	143.5	141.5	3.6	20.4	39.1	57.7	65.7
		1200	190.2	185.2	180.2	175.2	173.2	4.3	24.5	46.9	69.3	78.9
		1500	237.8	232.8	227.8	222.8	220.8	5.7	30.7	58.6	86.5	98.4
		1800	285.3	280.3	275.3	270.3	268.3	6.9	37.0	70.4	103.9	118.2
T6E-052	164.8	1000	164.8	159.8	154.8	149.8	147.8	3.7	21.2	40.6	59.9	68.2
		1200	197.8	192.8	187.8	182.8	180.8	4.4	25.4	48.6	71.9	81.9
		1500	247.2	242.2	237.2	232.2	230.2	5.8	31.8	60.8	89.8	102.2
		1800	296.6	291.6	286.6	281.6	279.6	7.1	38.3	73.1	107.8	122.8
T6E-057	179.8	1000	179.8	174.8	169.8	164.8	162.8	3.9	22.9	44.1	65.2	74.2
		1200	215.8	210.8	205.8	200.8	198.8	4.6	27.5	52.8	78.2	89.1
		1500	269.7	264.7	259.7	254.7	252.7	6.0	34.5	66.0	97.6	111.2
		1800	323.6	318.6	313.6	308.6	306.6	7.4	41.5	79.4	117.3	133.6
T6E-062	196.7	1000	196.7	191.7	186.7	181.7	179.7	4.1	24.9	48.0	71.1	81.0
		1200	236.0	231.0	226.0	221.0	219.0	4.9	29.8	57.6	85.3	97.2
		1500	295.1	290.1	285.1	280.1	278.1	6.3	37.4	71.9	106.5	121.3
		1800	354.1	349.1	344.1	339.1	337.1	7.7	45.0	86.5	127.9	145.7
T6E-066	213.3	1000	213.3	208.3	203.3	198.3	196.3	4.3	26.8	51.9	76.9	87.6
		1200	256.0	251.0	246.0	241.0	239.0	5.1	32.2	62.2	92.3	105.2
		1500	320.0	315.0	310.0	305.0	303.0	6.6	40.3	77.8	115.2	131.3
		1800	383.9	378.9	373.9	368.9	366.9	8.1	48.5	93.4	138.4	157.7
T6E-072	227.1	1000	227.1	222.1	217.1	212.1	210.1	4.4	28.4	55.1	81.7	93.1
		1200	272.5	267.5	262.5	257.5	255.5	5.3	34.1	66.1	98.1	111.8
		1500	340.7	335.7	330.7	325.7	323.7	6.9	42.7	82.6	122.5	139.6
		1800	408.8	403.8	398.8	393.8	391.8	8.4	51.4	99.2	147.1	167.6
T6E-085*	269.0	1000	269.0	264.0	-	-	-	4.9	33.3	-	-	-
		1200	322.8	317.8	-	-	-	5.9	40.0	-	-	-
		1500	403.5	398.5	-	-	-	7.6	50.1	-	-	-
		1800	484.2	479.2	-	-	-	9.2	60.2	-	-	-

	T7B	T7BS	T7D	T7DS	T7E	T7ES	T6C	T6D	T6E
E	38.1	38.1	38.1	38.1	52.3	52.3	38.1	38.1	52.3
F	82.3	82.3	87.4	87.4	110.0	110.0	82.3	87.4	110.0
G	168.5	168.5	184.9	184.9	225.3	225.3	161.6	184.9	225.3
J1	100.0	101.6	125.0	127.0	125.0	127.0	101.6	127.0	127.0
J2	99.967	101.55	124.937	126.095	124.937	129.095	101.55	126.095	126.095
N	140.0	146.0	180.0	181.0	180.0	181.0	146.1	181.0	181.0
O	174.5	174.5	212.4	212.4	213.0	231.0	174.5	212.4	213.0
φP	14.0	14.3	18.0	17.5	18.0	17.5	14.3	17.5	17.5

Oil port			Flange	Install Dimensions(mm)
Oil port			Flange	A1	B1	∅C1	D1	T1 Thread
T7B、T7BS	P	01:3/4"	F06	22.2	47.6	19	76.2	3/8"-16UNCx19.0
	P	00:1"	F08	26.2	52.4	25.4		3/8"-16UNCx19.0
	S	1-1/2"	F12	35.7	69.9	38.1		1/2"-13UNCx22.4
T7D、T7DS	P	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
T7D、T7DS	S	2"	F16	42.9	77.8	50.8	82.6	1/2"-13UNCx23.9
T7E、T7ES	P	1-1/2"	F12	35.7	69.9	38.1	98.6	1/2"-13UNCx23.4
T7E、T7ES	S	3"	F24	61.9	106.4	76.2	98.6	5/8"-11UNCx24.0
T6C	P	1"	F08	26.2	52.4	25.4	76.2	3/8"-15UNCx19.0
T6C	S	1-1/2"	F12	35.7	69.9	38.1	76.2	1/2"-13UNCx22.4
T6D	P	1-1/4"	F10	30.2	58.7	31.8	82.6	7/16"-14UNCx22.3
T6D	S	2"	F16	42.9	77.8	50.8	82.6	1/2"13UNCx23.9
T6E	P	1-1/2"	F12	35.7	69.9	38.1	98.6	1/2"-13UNCx23.4
T6E	S	3"	F24	61.9	106.4	76.2	98.6	5/8"-11UNCx24.0

Model	Shaft code	Max torque (N.m)	L1	L2	DIA	K1xK2	H1	M1
T7B	2	●	70.0	40.0	25.0065/24.9935	8.00×7.00	28.22	-
T7BS	1	●	71.4	38.1	22.225/22.200	6.35×6.30	24.95	M8x16
	3	●	40.7	24.5	SAE J498b class1, Diametral pitch 16/32, 13T			-
	4	●	45.5	24.5	SAE J498b class1, Diametral pitch 16/32, 15T			-
T7D	5	●	87.4	50.0	32.018/32.002	10.000×8.00	35.3	M10xx20
T7DS	1	●	83.6	49.3	31.750/31.700	7.94×7.89	35.27	M10xx20
	2	●	73.2	38.1	31.750/31.700	7.94×7.89	35.27
	3	●	55.2	38.0	SAE J498b class1, Diametral pitch 12/24, 14T			-
	4	●	77.7	48.0	SAE J498b class1, Diametral pitch 12/24, 14T			-
T7E	5	●	90.0	60.0	38.018/38.002	10.00×8.00	41.3	M10xx20
T7ES	1	●	90.9	50.8	38.100/38.050	9.52×9.47	42.36	M10xx20
	2	●	61.9	38.1	31.750/31.700	7.94×7.89	35.27	-
	3	●	55.2	38.0	SAE J498b class1, Diametral pitch 12/24, 14T			-
	4	●	62.2	31.5	SAE J498b class1, Diametral pitch 12/24, 17T			-
T6C	1	275	71.4	38.1	22.225/22.200	6.35×6.30	24.95	M8x16
	2	238	58.2	31.7	22.225/22.200	4.76×4.71	24.53	-
	3	343	40.7	24.5	SAE J498b class1, Diametral pitch 16/32, 14T			-
	4	●	45.5	24.5	SAE J498b class1, Diametral pitch 16/32, 17T			-
T6D	1	●	83.6	49.3	31.750/31.700	7.94×7.89	35.27	M10xx20
	2	577	73.2	38.1	31.750/31.700	7.94×7.89	35.27	-
	3	●	55.2	31.7	SAE J498b class1, Diametral pitch 12/24, 14T			-
	4	●	77.7	24.5	SAE J498b class1, Diametral pitch 12/24, 14T			-
T6E	1	●	90.9	50.8	38.100/38.050			M10xx20
	2	577	61.9	38.1	31.750/31.700			-
	3	●	55.2	38.0	SAE J498b class1, Diametral pitch 12/24, 14T			-
	4	●	62.2	31.5	SAE J498b class1, Diametral pitch 12/24, 17T			-

● work at maxmimum flow and pressure

Product detail pictures:

Related Product Guide:
Why every website owner needs Google Analytics

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs for Best Price on T6 Series Single Pump Supply to Cyprus, The product will supply to all over the world, such as: USA, Palestine, Surabaya, Qualified R&D engineer will be there for your consultation service and we will try our best to meet your requirements. So please feel free to contact us for inquiries. You'll be able to send us emails or call us for small business. Also you are able to come to our business by yourself to get further knowing of us. And we will surely give you the best quotation and after-sale service. We're ready to build stable and friendly relations with our merchants. To achieve mutual success, we will make our best efforts to build a solid co-operation and transparent communication work with our companions. Above all, we are here to welcome your inquiries for any of our goods and service.

Burndy Electric Hydraulic Pump

High-Quality Hydraulic Energy Pump

Monarch Electric Hydraulic Pump

OEM/ODM High Quality Pump

Rule Bait Pump Cartridge

Yuken Hydraulic Gear Pump

We have been cooperated with this company for many years, the company always ensure timely delivery ,good quality and correct number, we are good partners.

By John from UK - 2017.09.29 11:19

The factory can meet continuously developing economic and market needs, so that their products are widely recognized and trusted, and that's why we chose this company.

By Elizabeth from Georgia - 2017.01.28 19:59

Write your message here and send it to us
