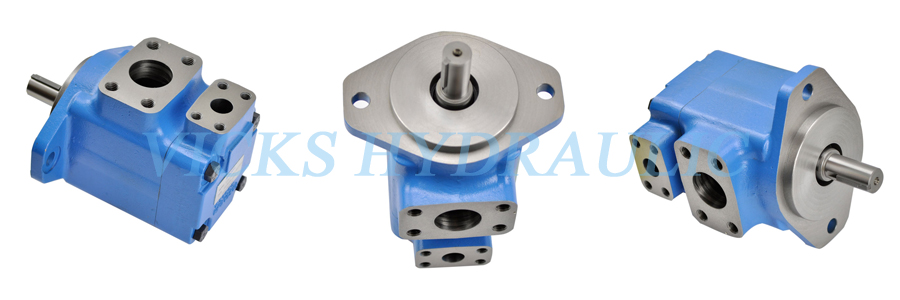

Bamka V Taxanaha Hal-hal ah ee Vickers Vane Bamka 20V 25V 35V 45V
Bamka Intra vane ee Waxqabadka Sare leh ee loogu talagalay mashiinnada duritaanka balaastikada ah, mashiinnada qalabka, mashiinnada shubka ee Die iyo qalabka birta.
Astaamaha
1. Bamka van-ka gudaha oo leh qaab-dhismeedka dheelitirka haydarooliga ayaa bixiya waxqabad deggan iyo cimri dheer tan iyo cadaadis yar oo ka yimaada vane-ka oo ku yaal stator.
2. Nidaamka laba iyo tobanka vane wuxuu bixiyaa garaaca qulqulka oo hooseeya taasoo keenta astaamo buuq yar oo nidaamka ah.
3. Barokac iyo usha kala duwan oo leh 4 meelood oo kala duwan oo ka soo horjeeda booska
4. Kartoonku wuu ka madax bannaan yahay usha wadista, taasoo u oggolaanaysa adeeg fudud iyada oo aan bamka laga saarin rakibaadda.
Shirkaddayada
Shirkaddayadu waa shirkad guud oo ka shaqeysa warshadaha wax soo saarka Taiwan Delta, Austria, KEBA. Waa lammaane istaraatiiji ah oo ka mid ah matoorka Phase servo, matoorka servo ee Yunshen, darawalka Haitian iyo bamka Sumitomo.
Ningbo Vicks waxay u hoggaansamaysaa waddada horumarinta ee hordhaca, hal-abuurka iyo ka-gudbinta, iyo falsafadda ganacsiga ee tayada sare, hufnaanta sare, isticmaalka hooseeya, iyo badbaadada. Shirkaddayadu waxay noqotay soo-saare caan ka ah adduunka oo dhan oo soo saara bamka haydarooliga iyo khabiir xal hal-joojin ah oo ku takhasusay badbaadinta tamarta servo.
Magacaabista Moodeelka
| (F3-) | 25V | 19 | A | -1 | A | 22 | R |
| Fiiro gaar ah | Taxanaha | Barakaca | Dekedda isku xirka | Nooca usha | Booska Dukaanka | Naqshadeynta lambar | Wareeg |
| Calaamadayn la'aan: Saliid taxane ah oo batrool ah dareeraha emulsification dareeraha biyaha glycol | 20V | 2、3、4、5、6、7、8、 9、10、11、12、14 | A-SAE Flange 4-bolt ah oo A-SAE ah | Furaha 1-Str 151-Spline | (Muuqaallo laga soo qaaday dhammaadka daboolka bamka) A-Iridda ka soo horjeedda B-90°CCW laga bilaabo albaabka laga galo C-Inline oo leh marin D-90°CW laga bilaabo albaabka laga galo | 22 | (Muuqaalada laga soo qaaday dhammaadka usha ee bamka) Gacanta R-midig ee saacadda u socota Gacanta L-bidix ee ka soo horjeedda saacadda u socota |
| 25V | 10、12、14、15、17、 19、21、25 | Furaha 1-Str Furaha Str 86-HD 11-Spline | |||||
| 35V | 21、25、30、32、35、 38、45 | ||||||
| 45V | 42、45、50、57、60、 66、75 |
Xogta Farsamada
| Taxanaha | Koodhka socodka (Usgpm) | Barakaca Joomatari mL/r (in3/r) | Iyada oo leh saliid hawo-qaadis ah ama dareeraha ester-ka fosfate | Iyadoo leh dareeraha glycol-ka biyaha | Iyada oo leh emulsions saliid biyo ah | Xawaaraha ugu yar r/daqiiqad | |||
| Cadaadiska ugu badan ee hawlgalka Mpa | Xawaaraha ugu Badan r/daqiiqad | Cadaadiska ugu badan ee hawlgalka Mpa | Xawaaraha ugu Badan r/daqiiqad | Cadaadiska ugu badan ee hawlgalka Mpa | Xawaaraha ugu Badan r/daqiiqad | ||||
| 20V | 2 | 7.5(0.46) | 13.8 | 1800 | 13.8 | 1500 | 6.9 | 1200 | 600 |
| 3 | 10(0.61) | ||||||||
| 4 | 13(0.79) | 20.7 | 15.9 | ||||||
| 5 | 16.5(1.01) | ||||||||
| 6 | 19(1.16) | ||||||||
| 7 | 23(1.40) | ||||||||
| 8 | 27(1.67) | ||||||||
| 9 | 30(1.85) | ||||||||
| 10 | 32(1.95) | ||||||||
| 11 | 36(2.20) | ||||||||
| 12 | 40(2.44) | 15.9 | 13.8 | ||||||
| 14 | 45(2.78) | 13.8 | |||||||
| 25V | 10 | 32.5(1.98) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 12 | 39(2.38) | ||||||||
| 14 | 45(2.78) | ||||||||
| 15 | 47(2.89) | ||||||||
| 17 | 55(3.36) | ||||||||
| 19 | 60(3.66) | ||||||||
| 21 | 67(4.13) | ||||||||
| 25 | 81(4.94) | ||||||||
| 35V | 21 | 67(4.13) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 25 | 81(4.94) | ||||||||
| 30 | 97(5.91) | ||||||||
| 32 | 101(6.16) | ||||||||
| 35 | 112(6.83) | ||||||||
| 38 | 121(7.37) | ||||||||
| 45 | 147(8.95) | 13.8 | 13.8 | ||||||
| 45V | 42 | 138(8.41) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 45 | 147(8.95) | ||||||||
| 50 | 162(9.85) | ||||||||
| 57 | 181(11.05) | ||||||||
| 60 | 193(11.75) | ||||||||
| 66 | 212(12.93) | ||||||||
| 75 | 237(14.46) | 13.8 | 13.8 | ||||||
Cabbirrada Rakibaadda
| Moodel | A | B | ∅C | D | E | ∅G | H | J | L | M | N | P | Q | R |
| 25V | 35.7 | 26.2 | 25.4 | 52.4 | 12.7 | 38.1 | 118 | 69.9 | 121 | 38.1 | 101.60/101.55 | 9.53 | 162.1 | 63.5 |
| 35V | 42.9 | 30.2 | 31.8 | 58.7 | 16 | 50.8 | 140 | 77.8 | 125.5 | 38.1 | 127.00/126.95 | 9.53 | 185 | 69.9 |
| 45V | 61.9 | 35.7 | 38.1 | 69.9 | 16 | 76.8 | 159 | 106.4 | 153 | 43 | 127.00/126.95 | 12.7 | 216 | 82.6 |
| Moodel | S | T | RU | ∅V | W | ∅X | ∅Qoto dun ah oo toosan, 4 godad | ∅Qoto dun ah oo Kx buuxa ah, 4 godad | ||||||
| 25V | 76.2 | 146 | 14 | 14.2 | 175 | 121 | 3/8-16UNC-2BX19.1 | 1/2-13UNC -2BX23.8 | ||||||
| 35V | 82.6 | 181 | 16 | 17.5 | 213 | 148 | 7/16-14UNC-2BX22.3 | 1/2-13UNC -2BX22.3 | ||||||
| 45V | 93.7 | 181 | 16 | 17.5 | 213 | 148 | 1/2-13UNC-2BX 23.8 | 5/8-11UNC -2BX 25.4 | ||||||
Sawirro dheeraad ah
Codsiga
Qalabka Sare
Shahaadada
Adeegyadayada
RFQ
1. Macaamiisha: Ma heli karaa muunad 1pcs ah si aan u tijaabiyo tayada?
Vicks Hydraulic: Haa, waxaan jeclaan lahayn inaan kuu iibino 1pcs muunad si aad u tijaabiso.
2. Macmiil: Haddii ay jirto wax dhibaato farsamo ah, sidee baad noo caawin kartaa?
Vicks Hydraulic: waxaan kuu soo diri doonnaa hagaha fiidiyowga iyo hawlgallada, kaas oo aan ku bari doono sida loo xalliyo.
3. Macmiil: Imisa maalmood oo wax soo saar badan ah?
Vicks Hydraulic: Qiyaastii 25-35 maalmood ka dib marka la xaqiijiyo amarka.
