VQ Series Cartridge

Short Description:

VQ Series vane Pumps Cartridge Product Introduction The High-pressure and high-performance Intra-vane pumps for Mobile Equipment Features To adopt balanced hydraulic for the structure of Intra-vane and ten –Vane design, higher pressure, top to 21 MPa. To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency. The side plate is made of dual-metal mate...


  • Item Name : High Quality Rotary Vane Cartridge
  • Power : Hydraulic
  • Pressure : High pressure
  • Material : Stainless Steel
  • Series : 20VQ 25VQ 35VQ 45VQ
  • Brand : Nvicks
  • Usage : For VQ series single/double pump
  • Feature : Low noise & long working life
  • Place of Origin : Ningbo, China
  • Delivery : 7-15days
  • Product Detail

    Product Tags

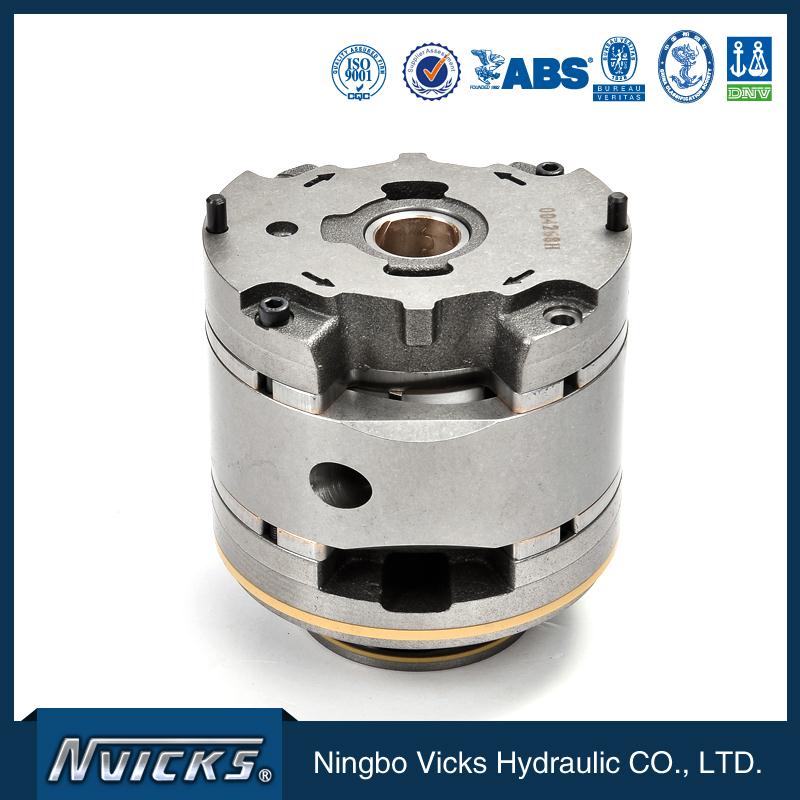

    VQ Series vane Pumps Cartridge

    Product Introduction

    The High-pressure and high-performance Intra-vane pumps for Mobile Equipment

    Features

    1. To adopt balanced hydraulic for the structure of Intra-vane and ten –Vane design, higher pressure, top to 21 MPa.

    2. To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency.

    3. The side plate is made of dual-metal material, it improved the seizure resistance, and so that the life of pump will be longer.

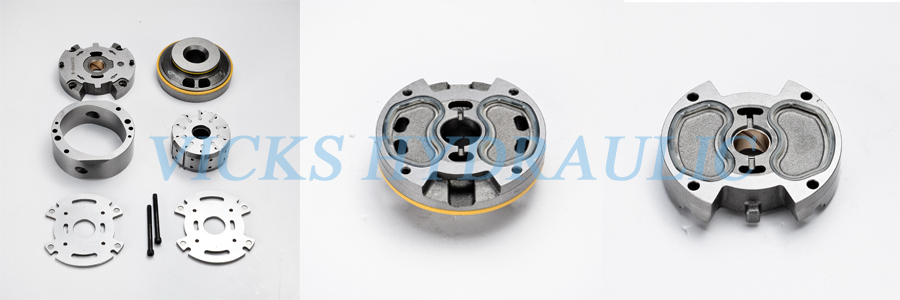

    VQ Series Cartridge Kit High Quality Rotary Vane Cartridge

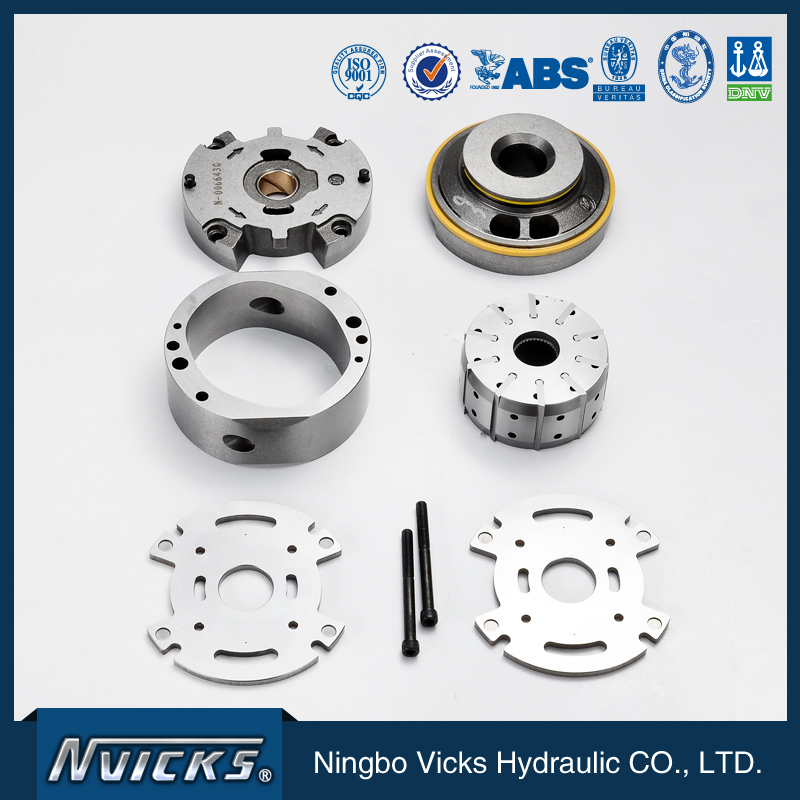

    NO. Part Qty NO. Part Qty NO. Part Qty
    1 Ball bearing  1 6 Vane kit  10 11 Oulet support   plate  1

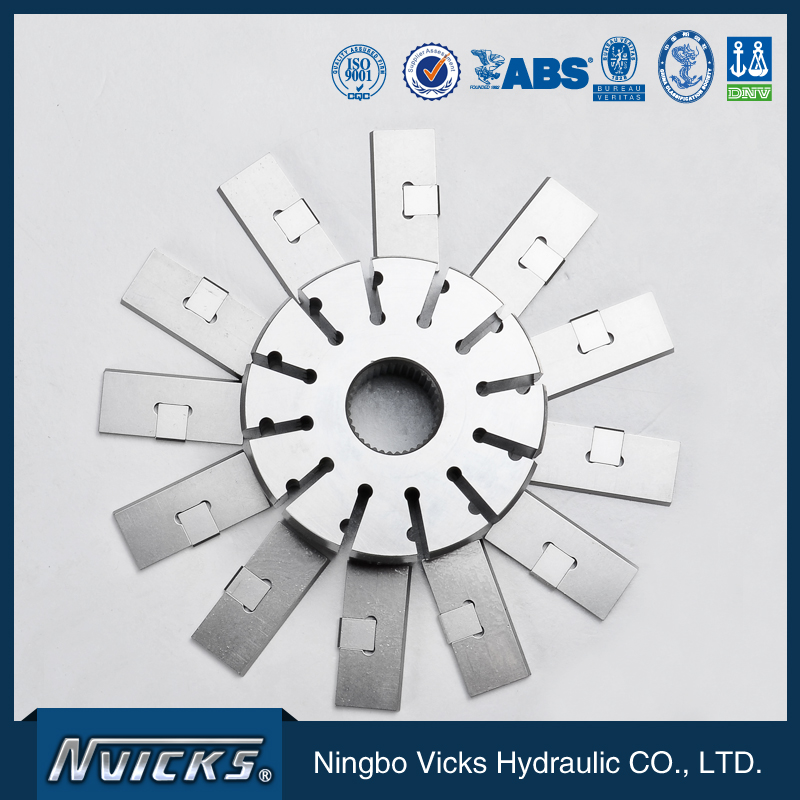

    2 Pin  2 7 Rotor  1 12 Retainer  1
    3 Hexagon socket head
        cap screws
    2 8 Cam ring  1 13 O shape retainer  1
    4 Inlet support plate 1 9 Irregular shape   retainer 4 14 Retainer  1
    5 Valve plate  2 10 O shape retainer  4


    Model Designation

    (F3-) PC- 25VQ 19 R 10
    Note  Cartridge mark  Series Flow   code  Rotation  Design
        number
    No-marking:
        Petroleum series oil emulsification fluid water glycol-fluid
        F3:
        phosphate
        ester fluid
    PC-   Cartridge kit of single pump double pump shaft end
        PCT- Cartridge kit of double pump cover end
    20VQ 2345678910111214 (Views   from shaft end of pump)
        R-right hand for clockwise
        L-left hand for counter-clockwise
    10
    25VQ 10121415

    17192125
    35VQ 21253032

    353845
    45VQ 42455057

    606675
